ELECTROMAGNETIC GRIPPER

PERMANENT MAGNETIC GRIPPERS

FERROMAGNET has been involved in the design and production of electromagnetic chucks for many years. Since 2020, the company has been heavily focused on designing and manufacturing electromagnetic gripper , lifting systems, and electromagnetic holding and clamping solutions for various industrial operations.

FERROMAGNET also manufactures electromagnetic gripper designed for gantry robots, welding robots, articulated robots, and different automation applications.

Magnetic grippers are rapidly replacing vacuum cups and holders.

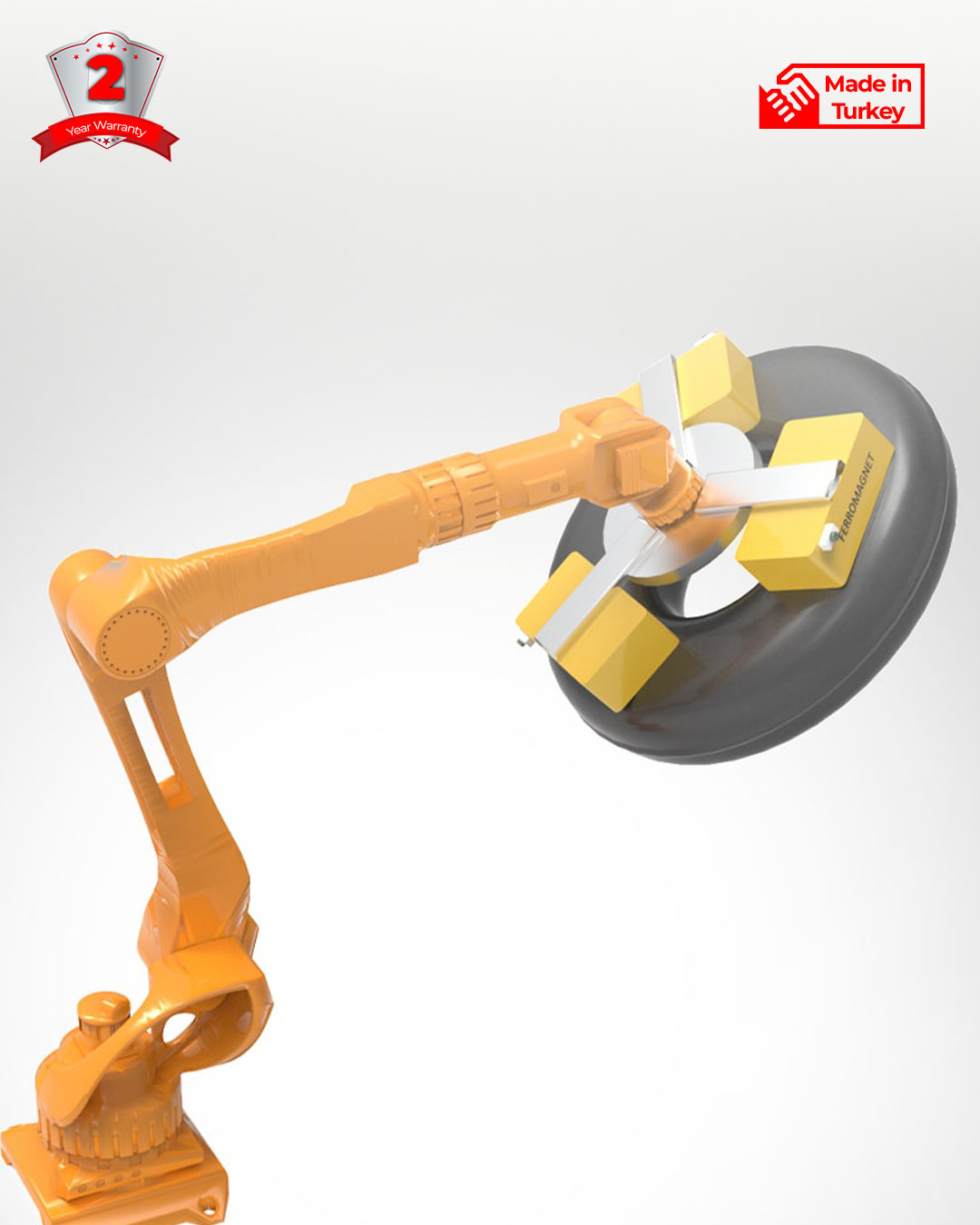

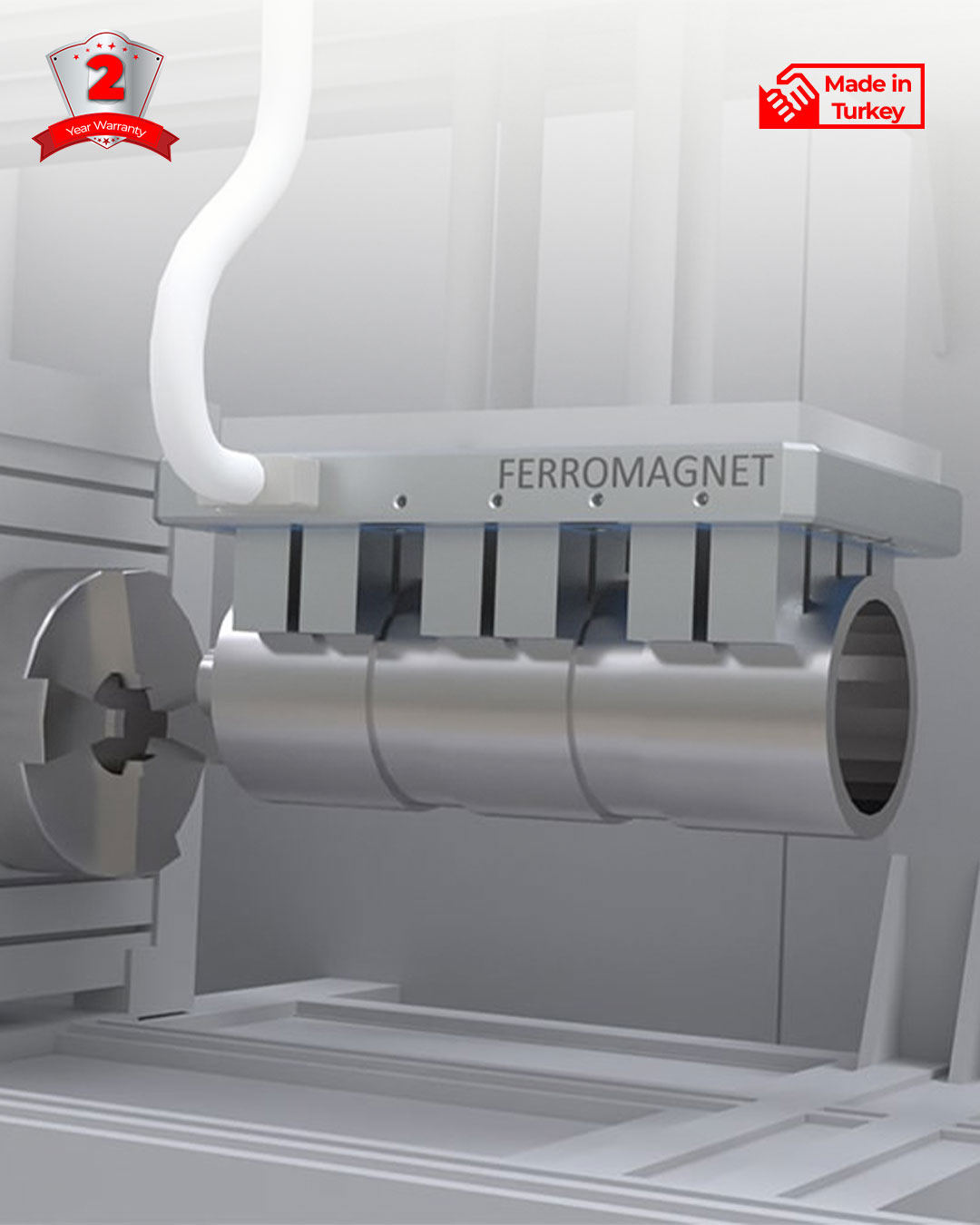

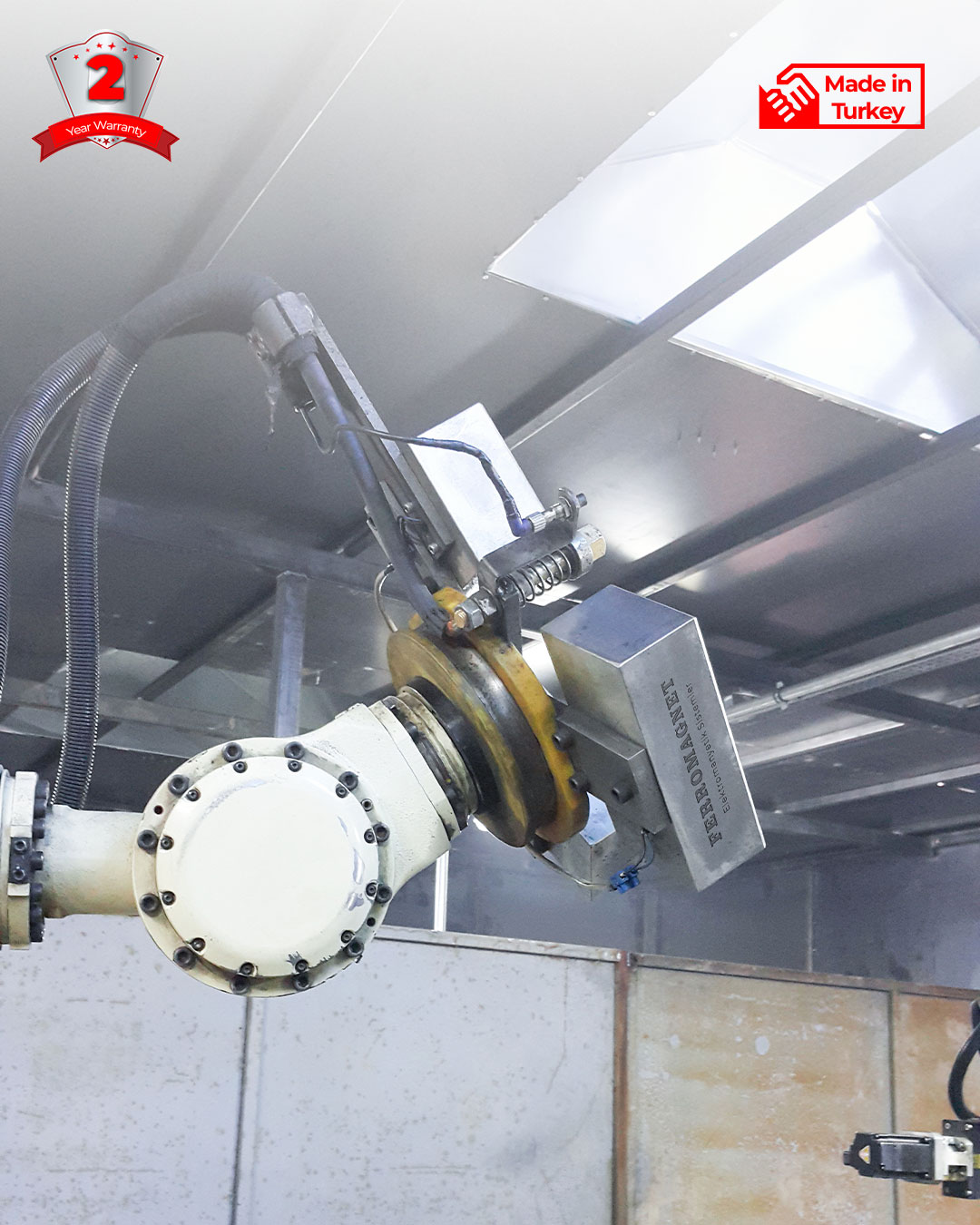

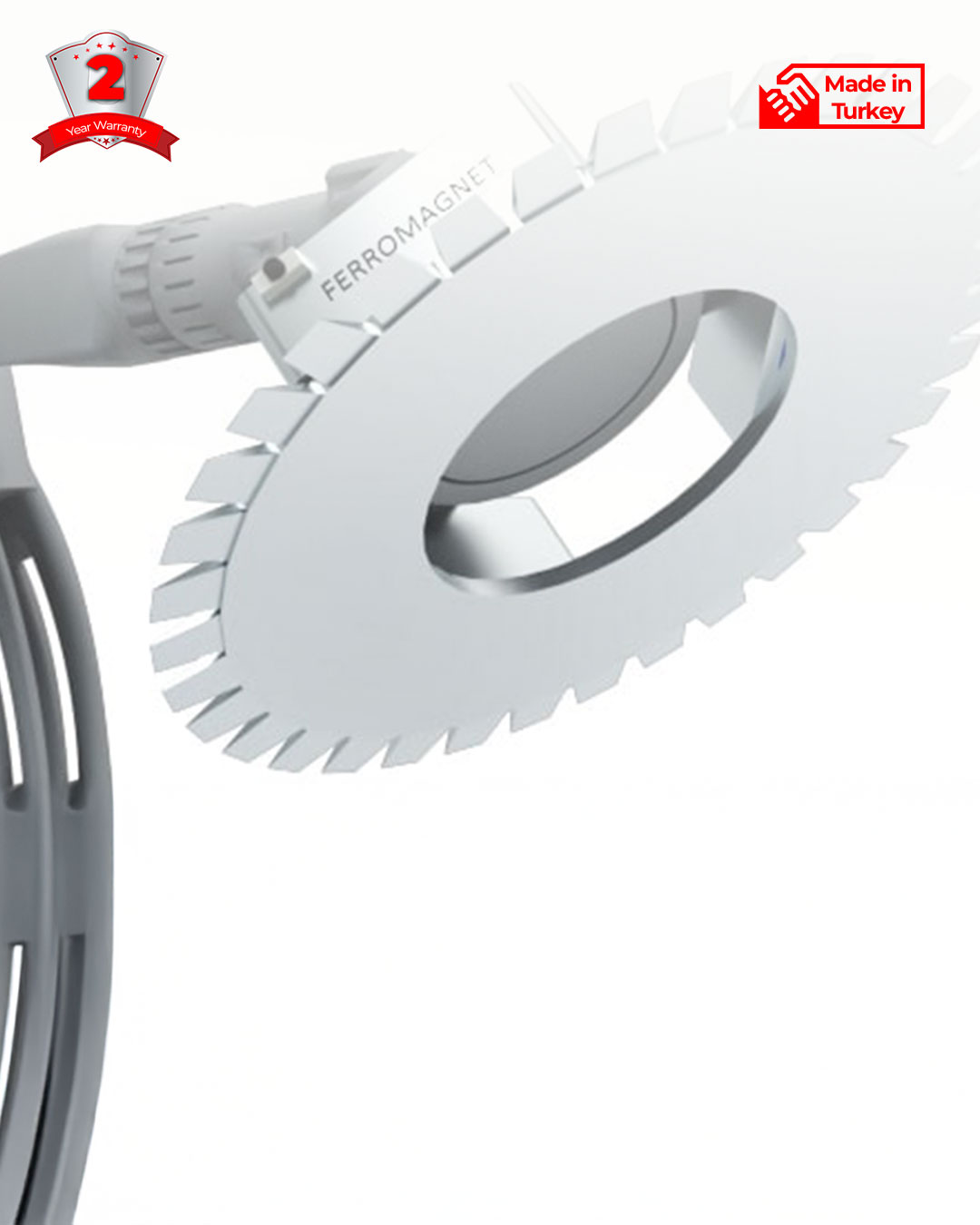

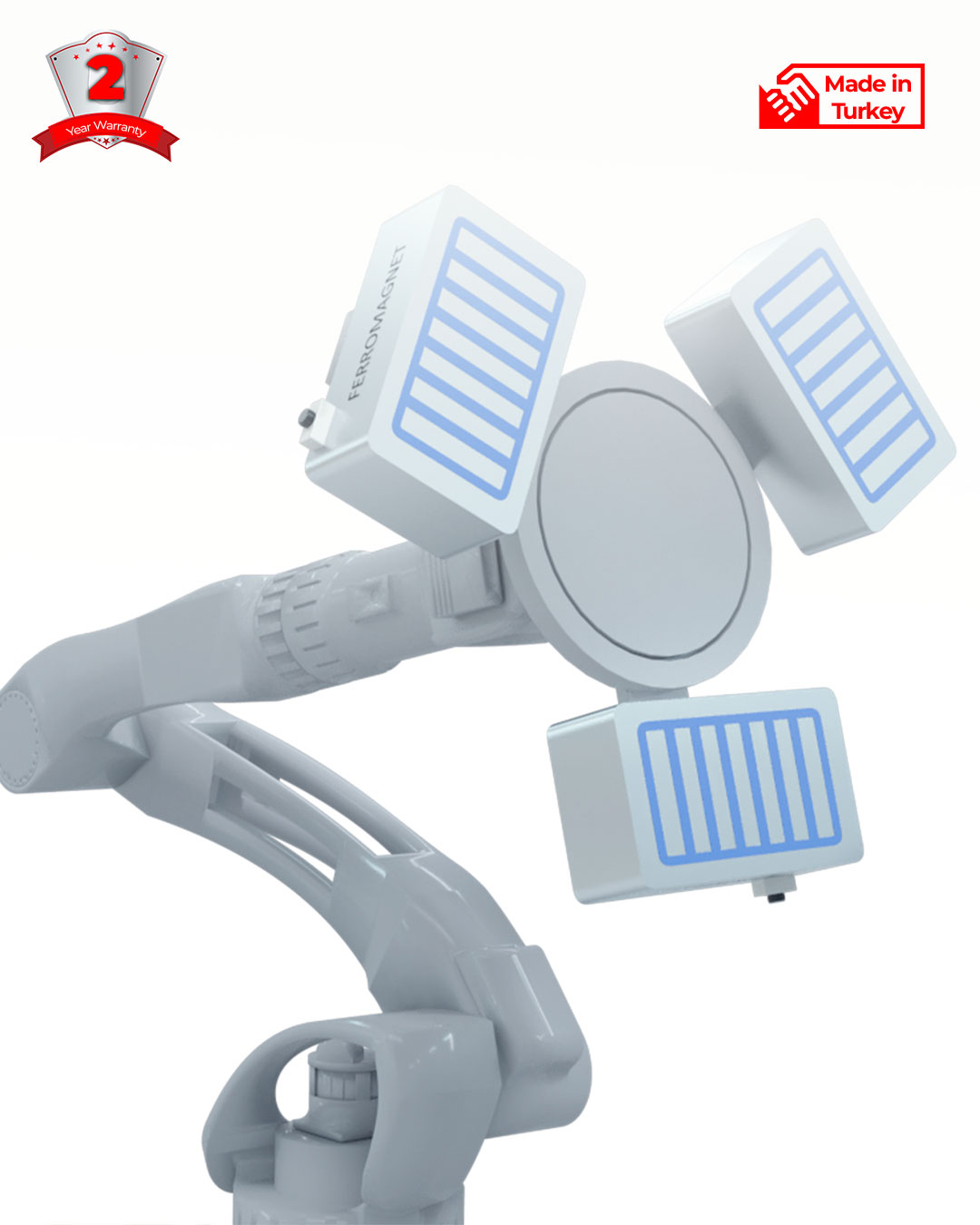

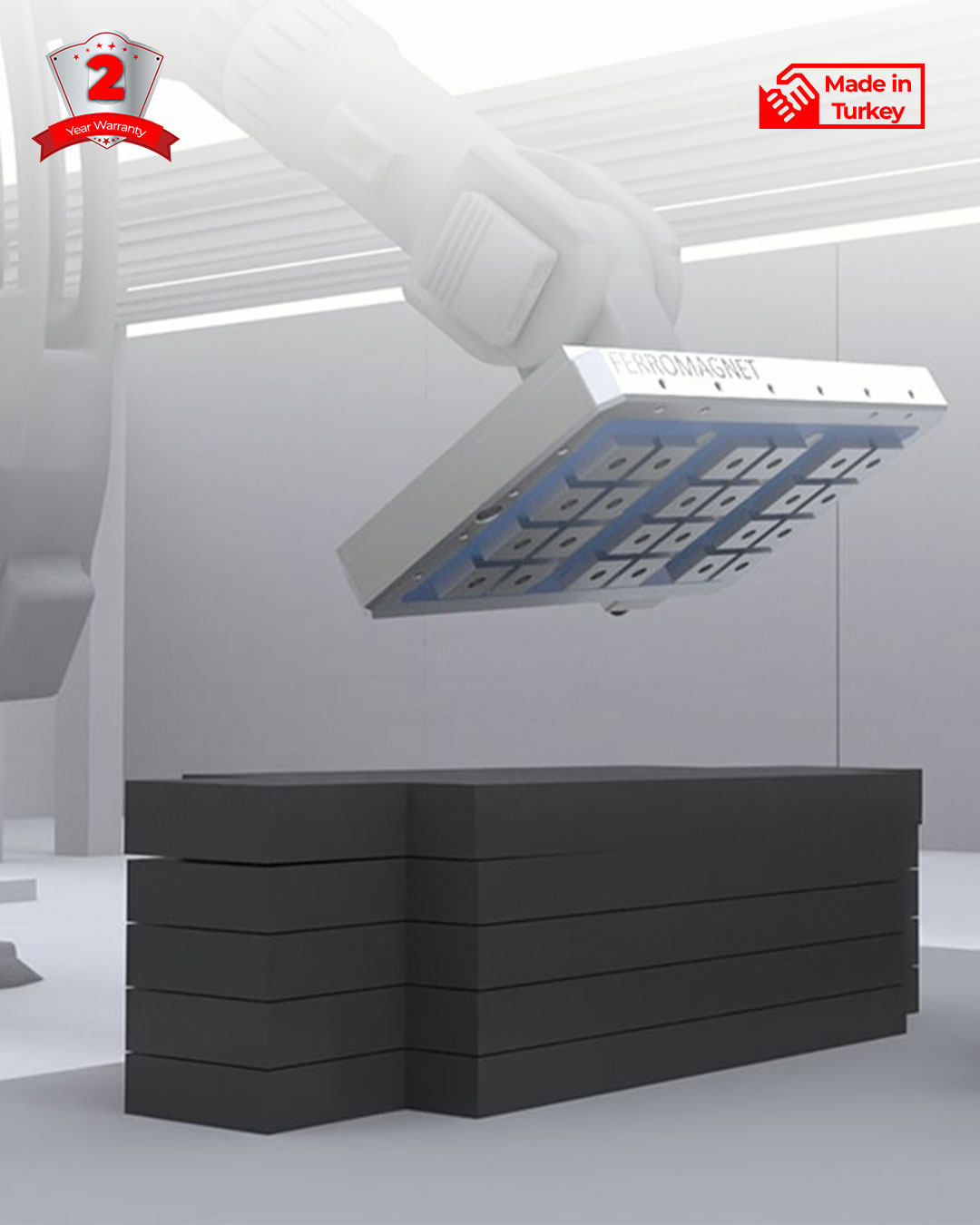

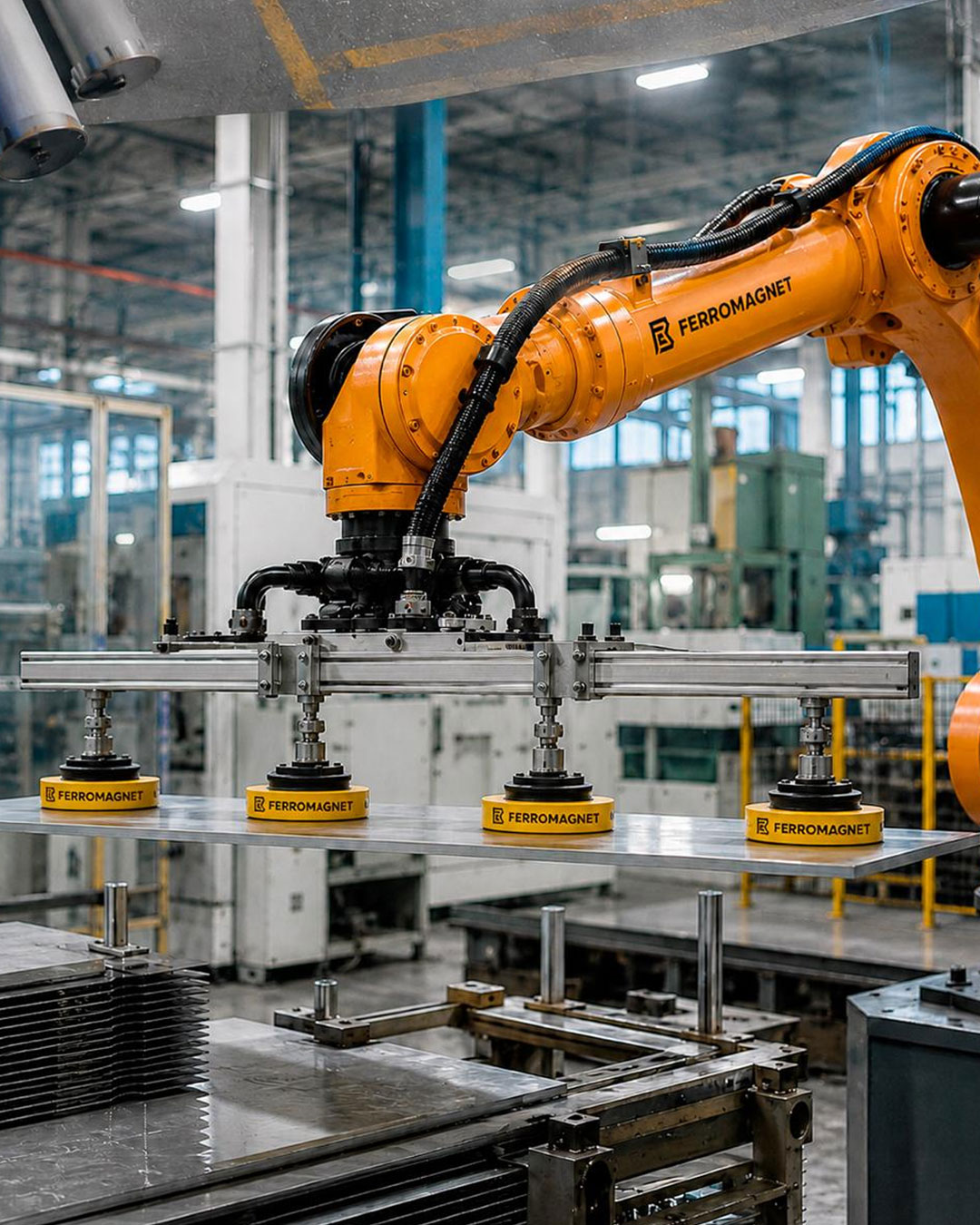

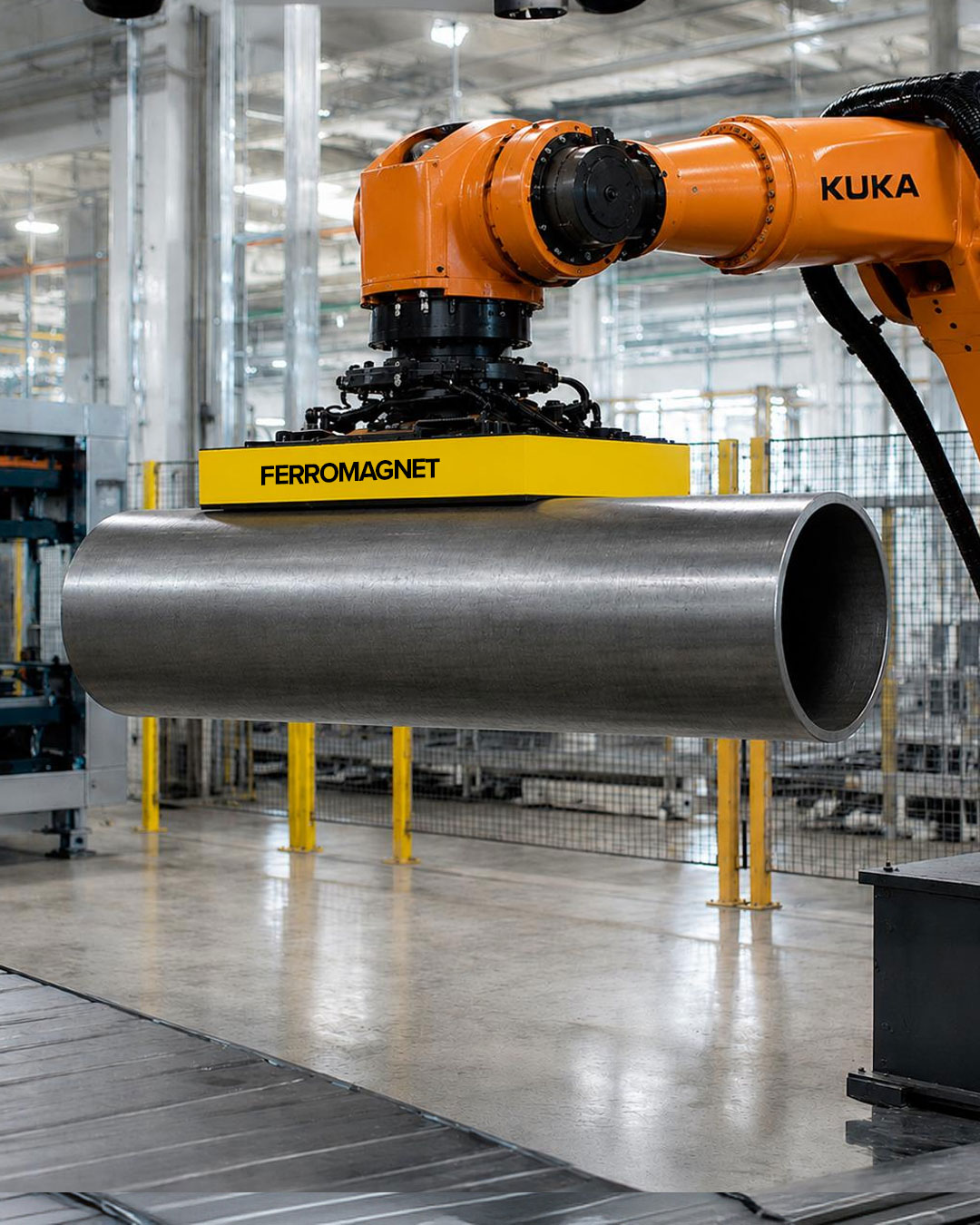

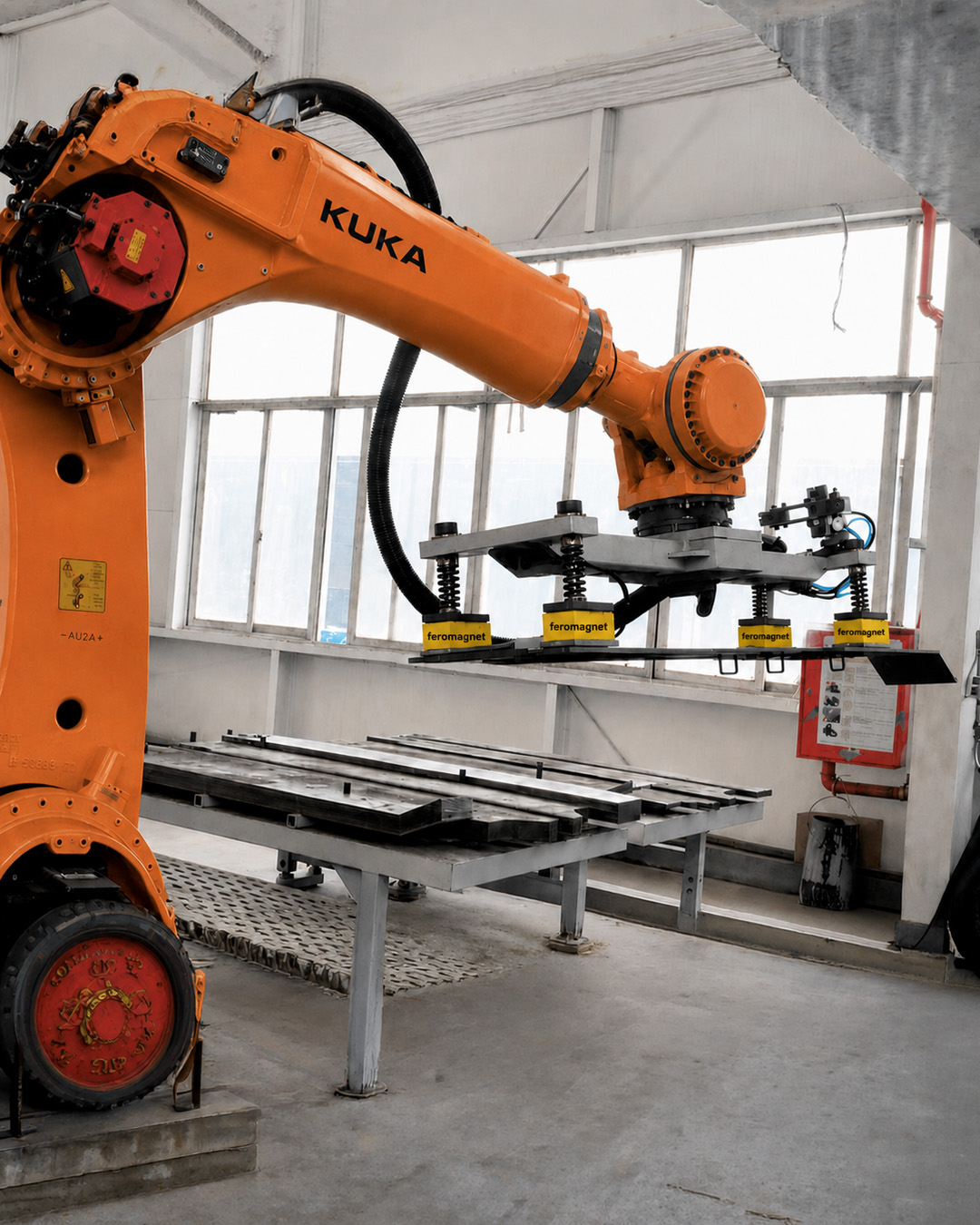

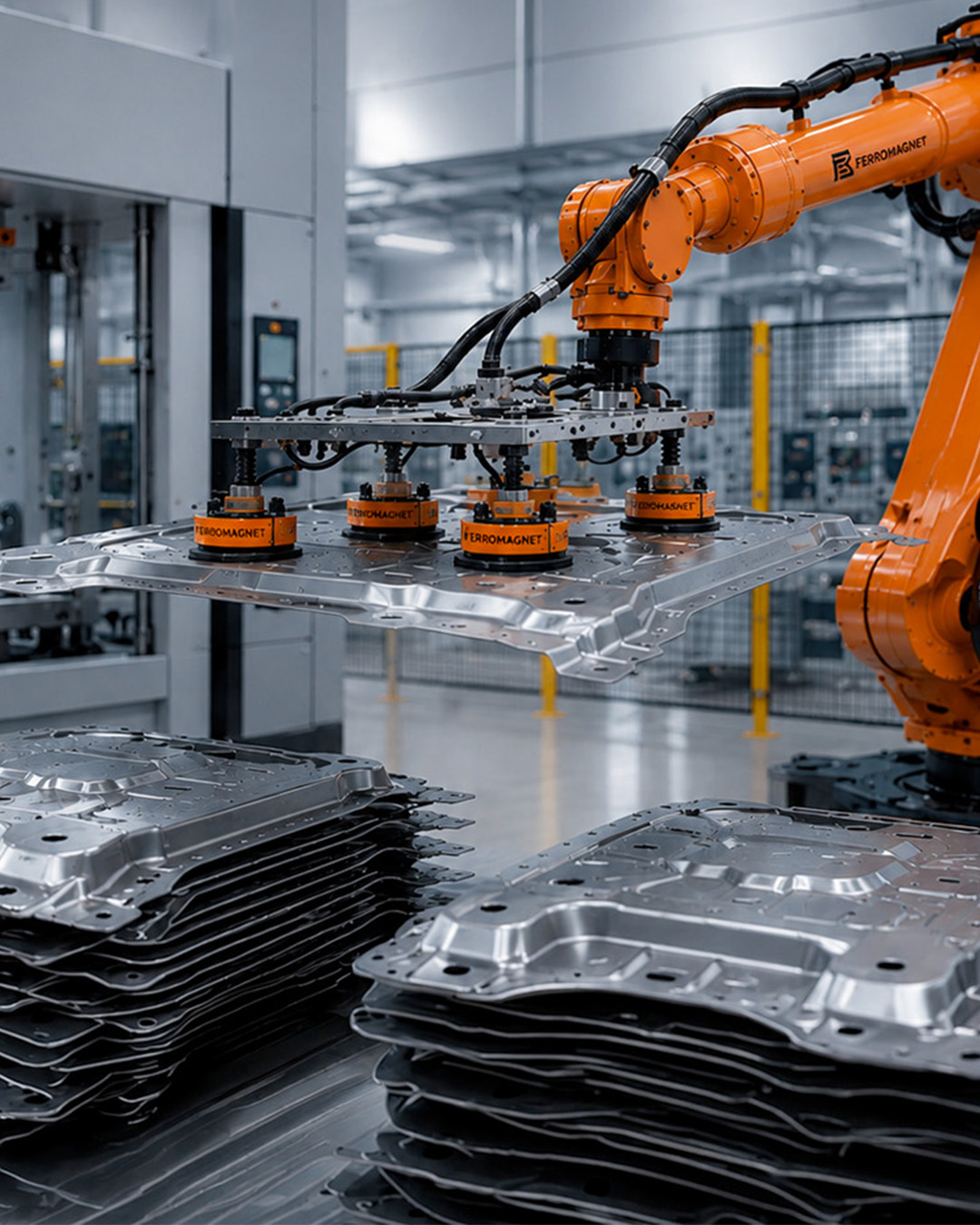

Electromagnetic gripper , when attached to the arms of robots, use a magnetic field to hold and automatically pick up and place steel objects. The transported parts remain undamaged and do not undergo deformation.

FERROMAGNET, merging industry with information technologies, manufactures systems aiming to eliminate human dependency and operator initiative, targeting high efficiency. The magnetic grippers it produces with this motivation are preferred in many operations such as transfer lines, conveyor lines, equipment selection and placement operations, general engineering, robotic systems, packaging machines, and palletizing/pallet unloading systems. FERROMAGNET provides technologically competent and safe solutions.

TURN

TECHNICAL DETAILS & ADVANTAGES

Tailored design to perfectly match various automation needs.

Ensures load remains free of distortion or dents due to the consistent gripping force of the magnets.

Offers a special magnetic pole to handle any type of steel load.

Magnetic force persists even when power is off, preventing part dropping and ensuring workplace safety.

Enables safe and efficient picking and placement for repetitive operations.

Results in reduced labor costs and enhanced productivity.

Electro-permanent magnet technology provides the most secure transport method and requires no maintenance for use.

It is designed in a lightweight structure to increase the carrying capacity of the robot arm.

Frequently Asked Questions:

What are electromagnetic tables/chucks used for?

Electromagnetic chucks are used for holding and machining parts in metalworking machines. They are commonly used in milling, turning, and drilling operations.

Can I operate multiple electromagnetic chucks simultaneously with a single control unit?

Yes, using Ferromagnet electromagnetic chucks allows you to connect two electromagnetic tables with a dual-output single control unit.

In which industries are electromagnetic chucks used?

Electromagnetic chucks are commonly used in the metalworking industry, automotive industry, machine manufacturing, and similar industries.

What are the advantages of electromagnetic chucks?

Electromagnetic chucks increase safety during machining by securely holding parts and allowing for precise machining of workpieces. They also speed up production processes by enabling quick and easy changeover of workpieces.

What is the warranty period for FERROMAGNET electromagnetic chucks?

FERROMAGNETT electromagnetic systems typically come with a one-year warranty period. However, the warranty period may vary depending on the product and the seller.

What is the total weight of the chucks and the unit?

The weight of the control units is approximately 5 kilograms on average. You can review the weights of Ferromagnet P15 Series & SQ Series magnetic chuck according to their dimensions in the table below.

What is the holding force of the electromagnetic chucks?

You can review the holding forces of Ferromagnet P15 Series & SQ Series electromagnetic chuck according to their dimensions in the table below.

After purchase, how are shipping processes carried out?

Shipping fees vary depending on the shipping company we have an agreement with, the weight, and the distance. We offer shipping to every part of Europe. Products are sent with the recipient paying for the shipping.

If it comes into contact with liquid during processing, would I encounter any problems?

Ferromagnet electromagnetic chucks are resistant to liquid contact thanks to their military-grade sockets. This feature means that they will not be affected by boron oil and coolant fluids. Therefore, you will not encounter any problems caused by liquid contact during processing.

What are the special and standard dimensions of electromagnetic chucks?

Electromagnetic tables are typically produced in standard and custom sizes. Standard sizes are usually determined according to industrial standards and are suitable for commonly used machine models. Custom sizes, on the other hand, are determined according to customer requests and are produced specifically for a particular project or application. Custom sizes can vary in dimensions and shapes from standard sizes and are usually designed to provide the required features for a specific product or application. For example, electromagnetic tables with a larger surface area can be produced in custom sizes to process larger parts.

You can review the standard magnetic table dimensions of the FERROMAGNET P15 series & SQ Series in the table below.

MODEL CODE
WIDTH (MM)
LENGTH (MM)
POLE PITCH (MM)
OPERATING VOLTAGE
TOTAL CLAMPING FORCE
TOTAL WEIGHT
SQ FM EPMT 400*400
400
400
55
220 V.
9 TON
55 KG
SQ FM EPMT 400*600
400
600
55
220 V.
14 TON
75 KG
SQ FM EPMT 400*800
400
800
55
220 V.
18 TON
110 KG
MODEL CODE
WIDTH (MM)
LENGTH (MM)
POLE PITCH (MM)
OPERATING VOLTAGE
TOTAL CLAMPING FORCE
TOTAL WEIGHT
P15 FM EPMC 500*500
500
500
15
220 V.
13 TON
85 KG
P15 FM EPMC 500*600
500
600
15
220 V.
20 TON
110 KG
P15 FM EPMC 500*800
500
800
15
220 V.
35 TON
180 KG
5/5
5/5
5/5
