P15 SERIES ELECTROMAGNETIC CHUCK

PARALLEL AND MULTI-POLE ELECTROMAGNETIC CHUCK

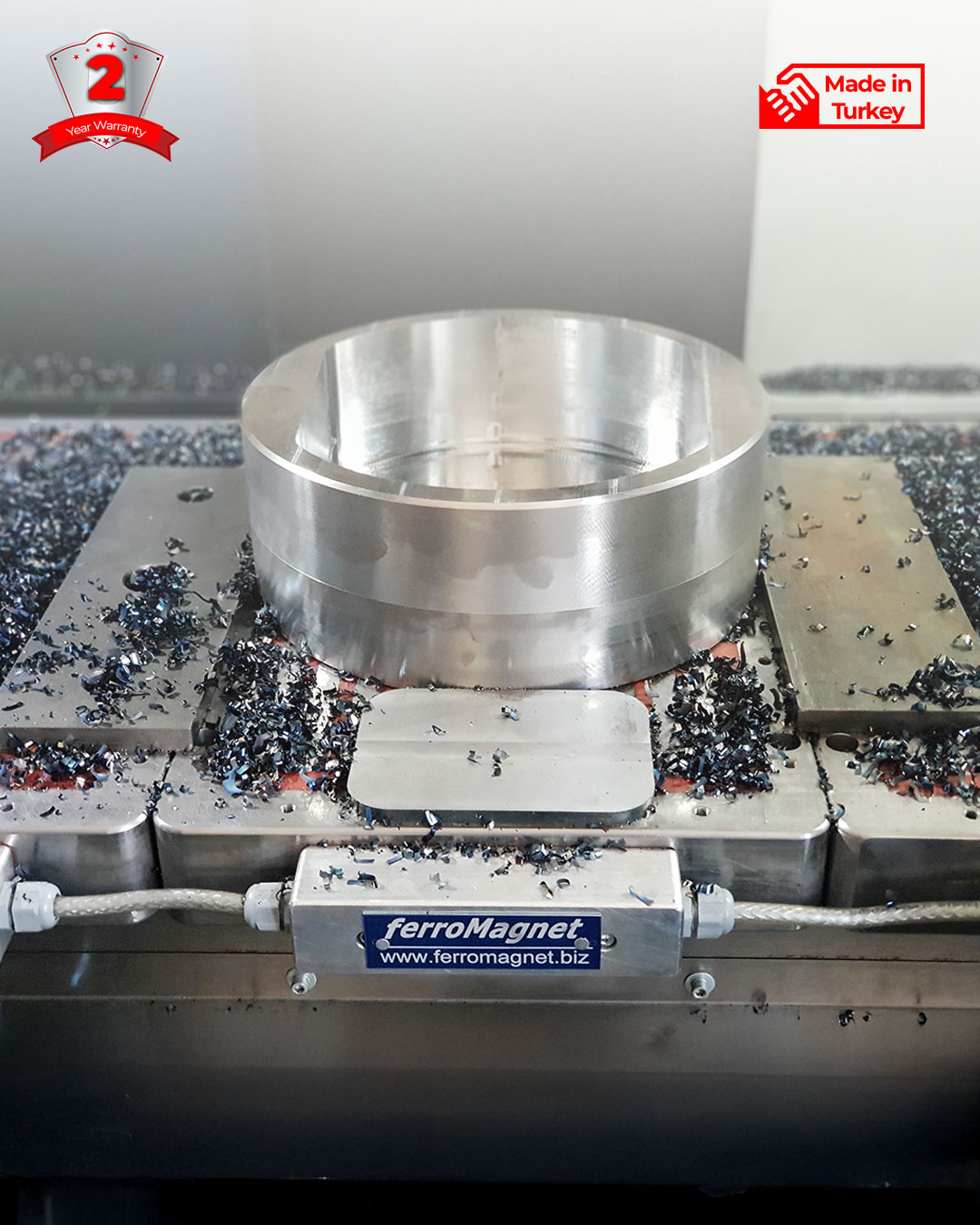

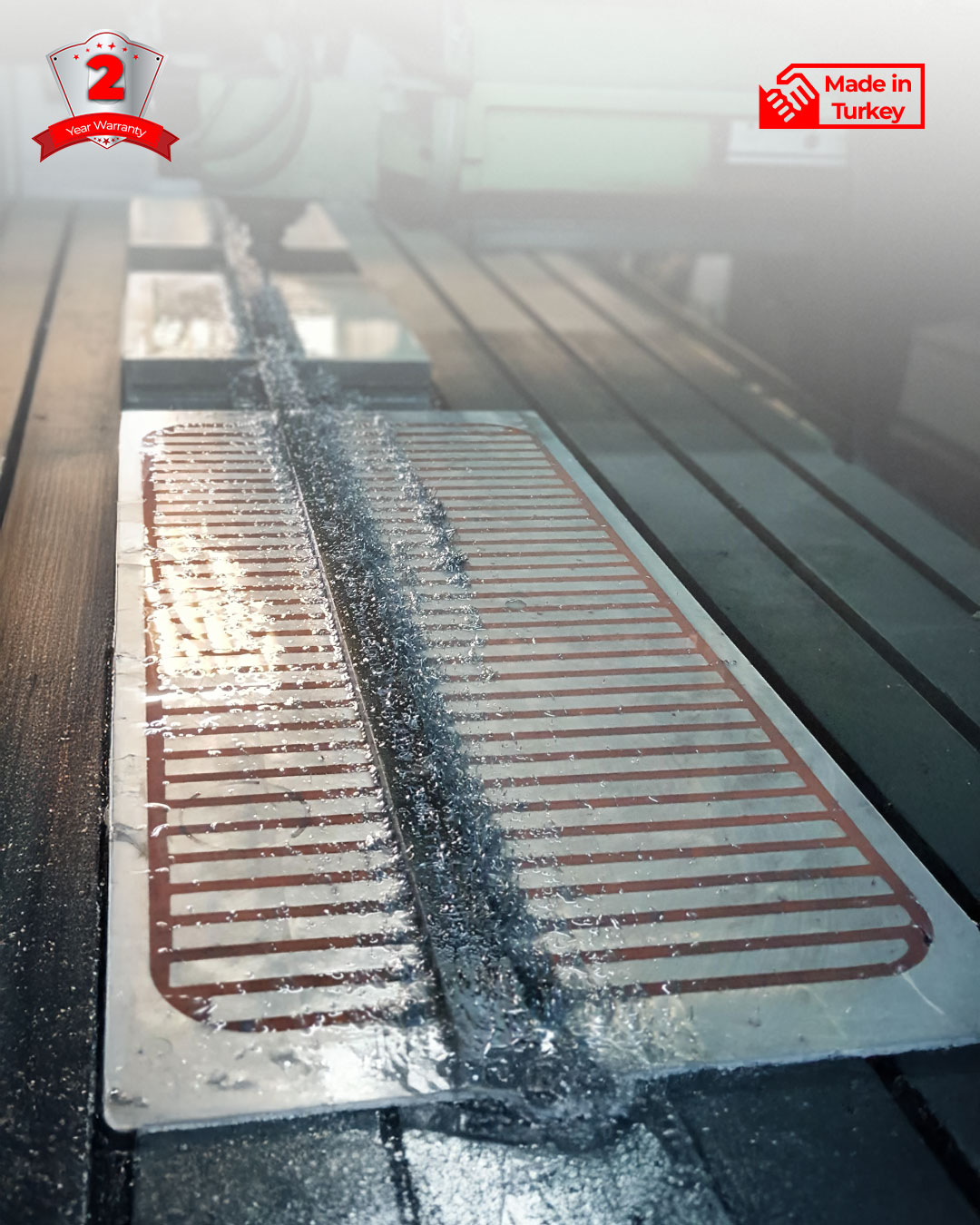

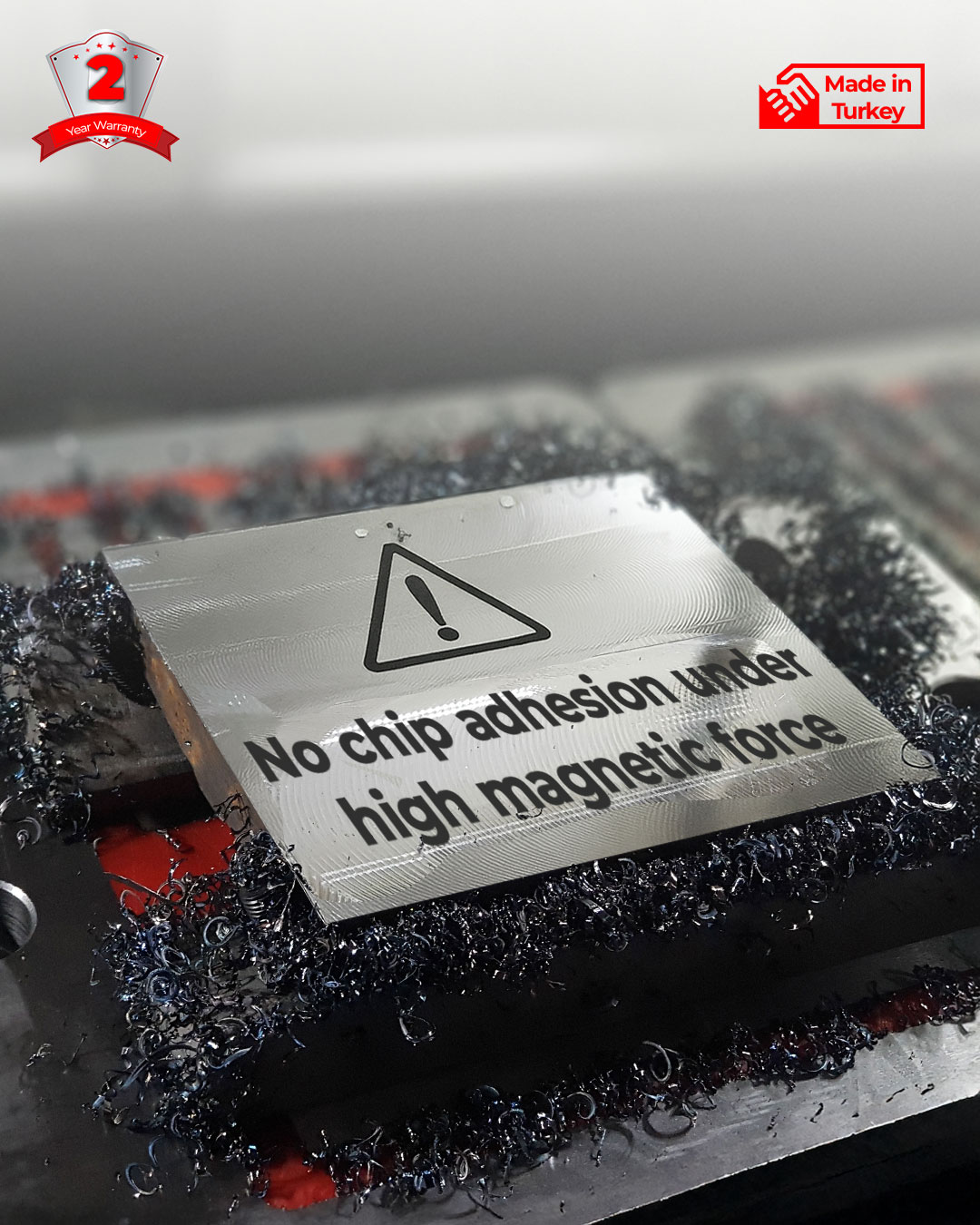

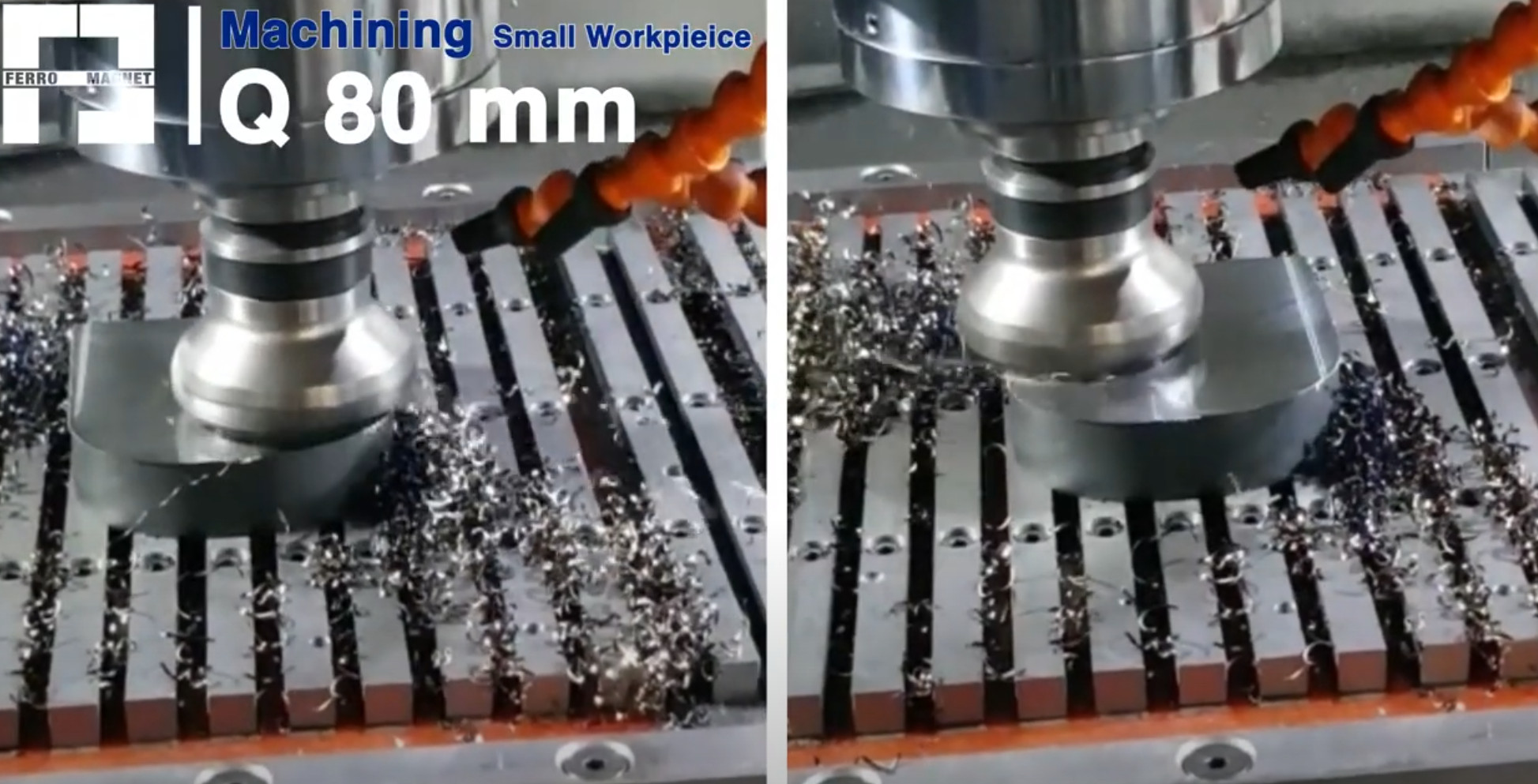

The P15 series electromagnetic tables are an unparalleled product with the latest developments; thanks to its rectangular, very thin, and very dense magnetic pole technology, it does not stick  metal chips to the part, and you can process even 4 mm thick parts smoothly with FERROMAGNET. The magnetic holding force is greater than its counterparts.

If you fill out our contact form for P15 series electromagnetic tables and submit your request for a price quote, our sales engineers will share the most suitable product and price for your needs with you.

TURN

TECHNICAL SPECIFICATIONS

It requires only 2 seconds of electricity for the opening/closing operation.It operates with 220 V electricity.It does not require electricity during operation.Thanks to its military-grade sockets, it is not affected by boron oil and coolant fluids.It is not affected by chips thanks to its special flame-retardant cables and is extremely safe.It can machine all five surfaces of the workpiece in a single clamping.It reduces vibration during machining, extends tool life, and increases efficiency.It is produced in Turkey with full insulation and robust mechanical hardware.

ADVANTAGES

High Power and Performance: The P15 Series electromagnetic chucks offer high performance and efficiency, saving you time and energy in your production processes.

Reliable and Durable: Manufactured with high-quality materials, the P15 Series electromagnetic chucks offer a reliable solution with long-term use and low maintenance requirements.

Flexible and Easy Adaptation: Designed for various industrial applications, electromagnetic tables provide flexibility and easy adaptation.

User-Friendly: The P15 Series magnetic tables offer easy control for user-friendly operation.

magnetic chuck

P15 SERIES ELECTROMAGNETIC CHUCK
500 X 500 mm

magnetic chuck

P15 SERIES ELECTROMAGNETIC CHUCK
500 X 600 mm

magnetic chuck

P15 SERIES ELECTROMAGNETIC CHUCK
500 X 800 mm

Frequently Asked Questions:

What are electromagnetic tables/chucks used for?

Electromagnetic chucks are used for holding and machining parts in metalworking machines. They are commonly used in milling, turning, and drilling operations.

Can I operate multiple electromagnetic chucks simultaneously with a single control unit?

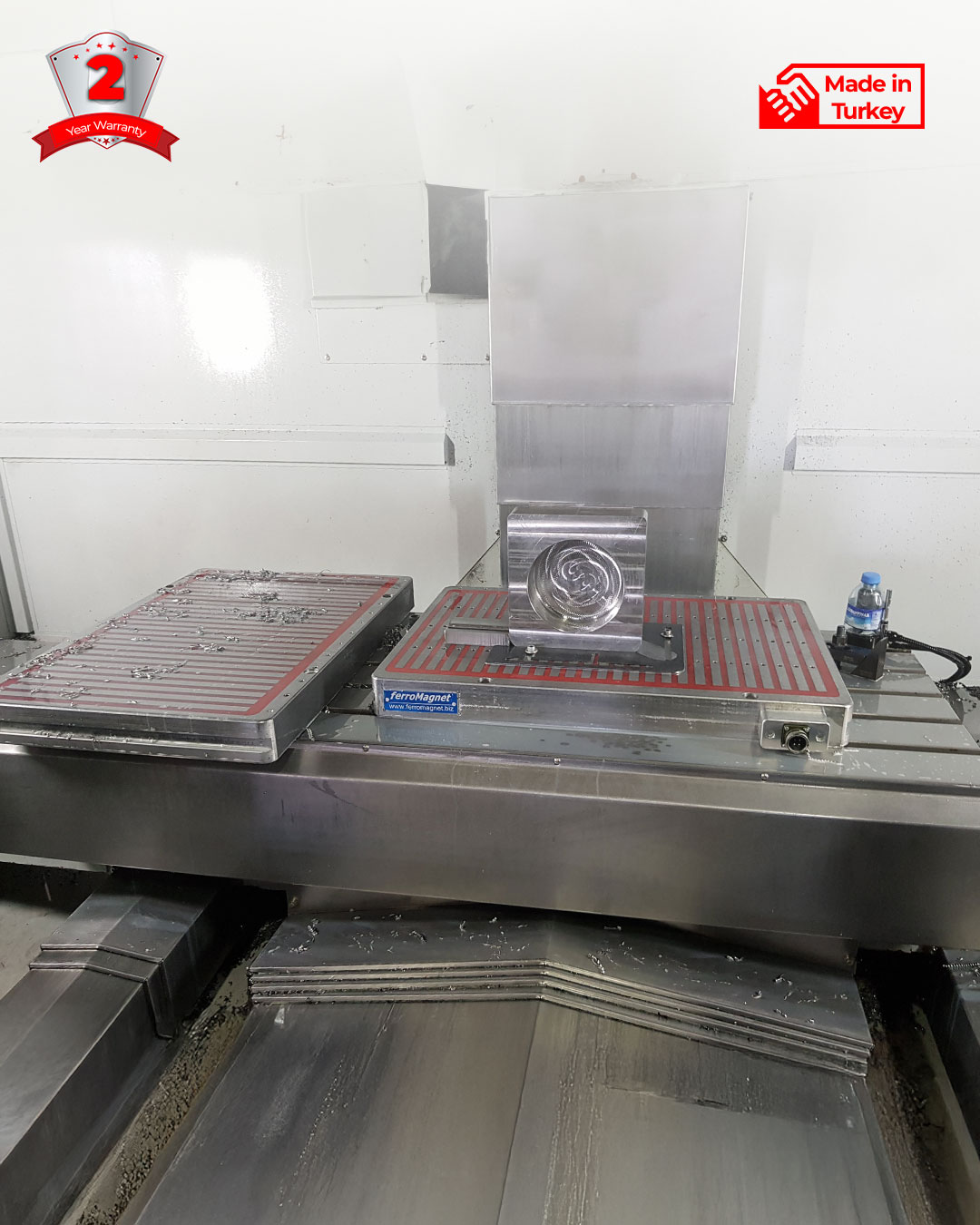

Yes, using Ferromagnet electromagnetic chucks allows you to connect two electromagnetic tables with a dual-output single control unit.

In which industries are electromagnetic chucks used?

Electromagnetic chucks are commonly used in the metalworking industry, automotive industry, machine manufacturing, and similar industries.

What are the advantages of electromagnetic chucks?

Electromagnetic chucks increase safety during machining by securely holding parts and allowing for precise machining of workpieces. They also speed up production processes by enabling quick and easy changeover of workpieces.

What is the warranty period for FERROMAGNET electromagnetic chucks?

FERROMAGNETT electromagnetic systems typically come with a one-year warranty period. However, the warranty period may vary depending on the product and the seller.

What is the total weight of the chucks and the unit?

The weight of the control units is approximately 5 kilograms on average. You can review the weights of Ferromagnet P15 Series magnetic chuck according to their dimensions in the table below.

What is the holding force of the electromagnetic chucks?

You can review the holding forces of Ferromagnet P15 Series electromagnetic chuck according to their dimensions in the table below.

After purchase, how are shipping processes carried out?

Shipping fees vary depending on the shipping company we have an agreement with, the weight, and the distance. We offer shipping to every part of Europe. Products are sent with the recipient paying for the shipping.

If it comes into contact with liquid during processing, would I encounter any problems?

Ferromagnet P15 Series electromagnetic chucks are resistant to liquid contact thanks to their military-grade sockets. This feature means that they will not be affected by boron oil and coolant fluids. Therefore, you will not encounter any problems caused by liquid contact during processing.

What are the special and standard dimensions of electromagnetic chucks?

Electromagnetic tables are typically produced in standard and custom sizes. Standard sizes are usually determined according to industrial standards and are suitable for commonly used machine models. Custom sizes, on the other hand, are determined according to customer requests and are produced specifically for a particular project or application. Custom sizes can vary in dimensions and shapes from standard sizes and are usually designed to provide the required features for a specific product or application. For example, electromagnetic tables with a larger surface area can be produced in custom sizes to process larger parts.

You can review the standard magnetic table dimensions of the FERROMAGNET  P15 series in the table below.

The choice of workholding fixture is crucial for maximizing machining and production efficiency, as how a machined part is held is just as important as how it is cut. FERROMAGNET offers a range of electro permanent magnetic chucks designed to securely hold ferromagnetic workpieces for grinding, milling, and CNC machining lathe machine applications. These chucks provide several advantages to your machining process:

  • Ensures constant and uniform clamping, providing full support to the workpiece.
  • Eliminates vibrations and chatter, unlike mechanical clamps and vises.
  • Enables access to multi-side machining without the need to stop and re-position the workpiece.
  • Enhances safety with electro-permanent magnetic technology, ensuring a secure and stable hold of the workpiece even in the event of a power outage.
MODEL CODE
WIDTH (MM)
LENGTH (MM)
POLE PITCH (MM)
OPERATING VOLTAGE
TOTAL CLAMPING FORCE
TOTAL WEIGHT
P15 FM EPMC 500*500
500
500
15
220 V.
13 TON
85 KG
P15 FM EPMC 500*600
500
600
15
220 V.
20 TON
110 KG
P15 FM EPMC 500*800
500
800
15
220 V.
35 TON
180 KG
5/5
5/5
5/5
