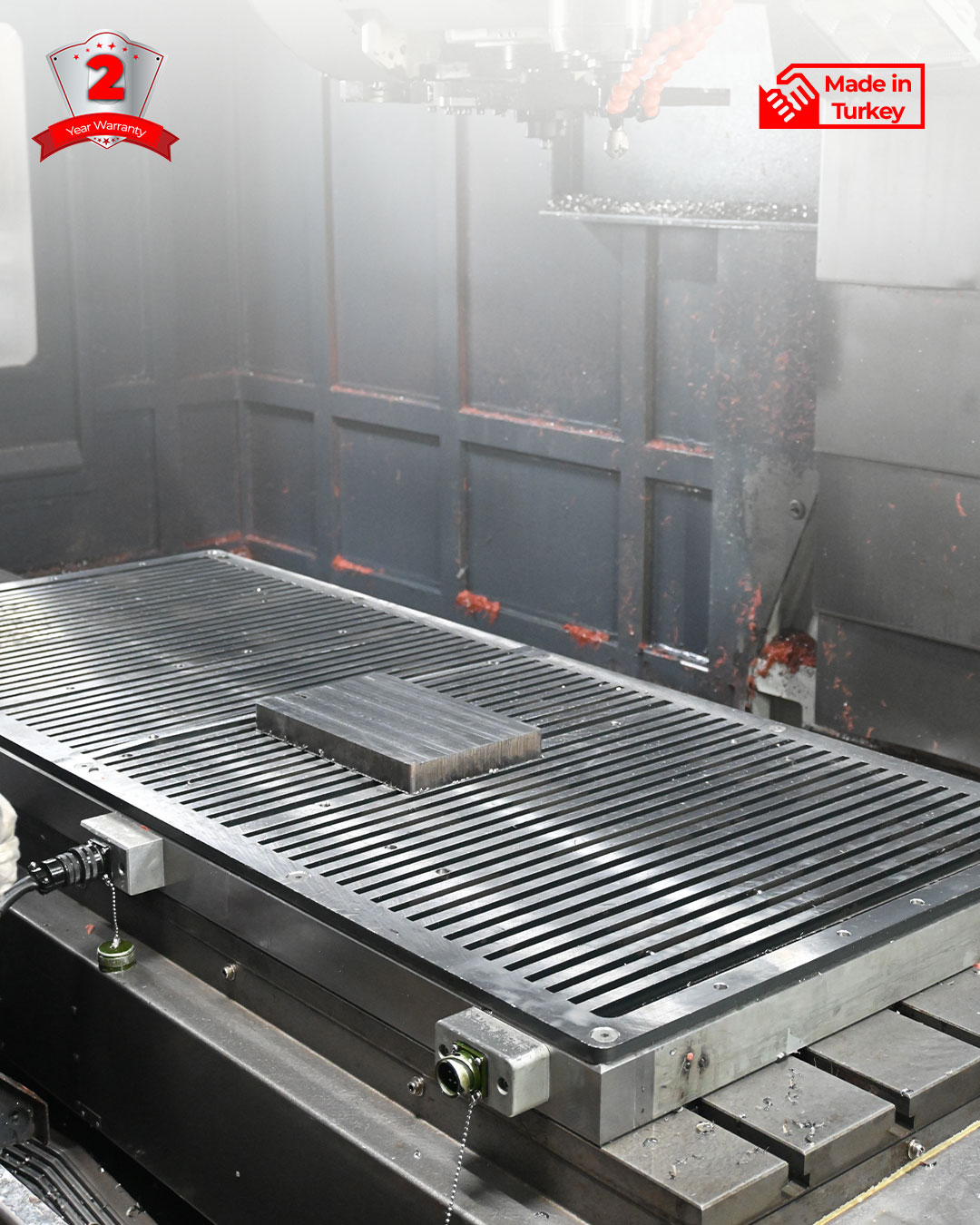

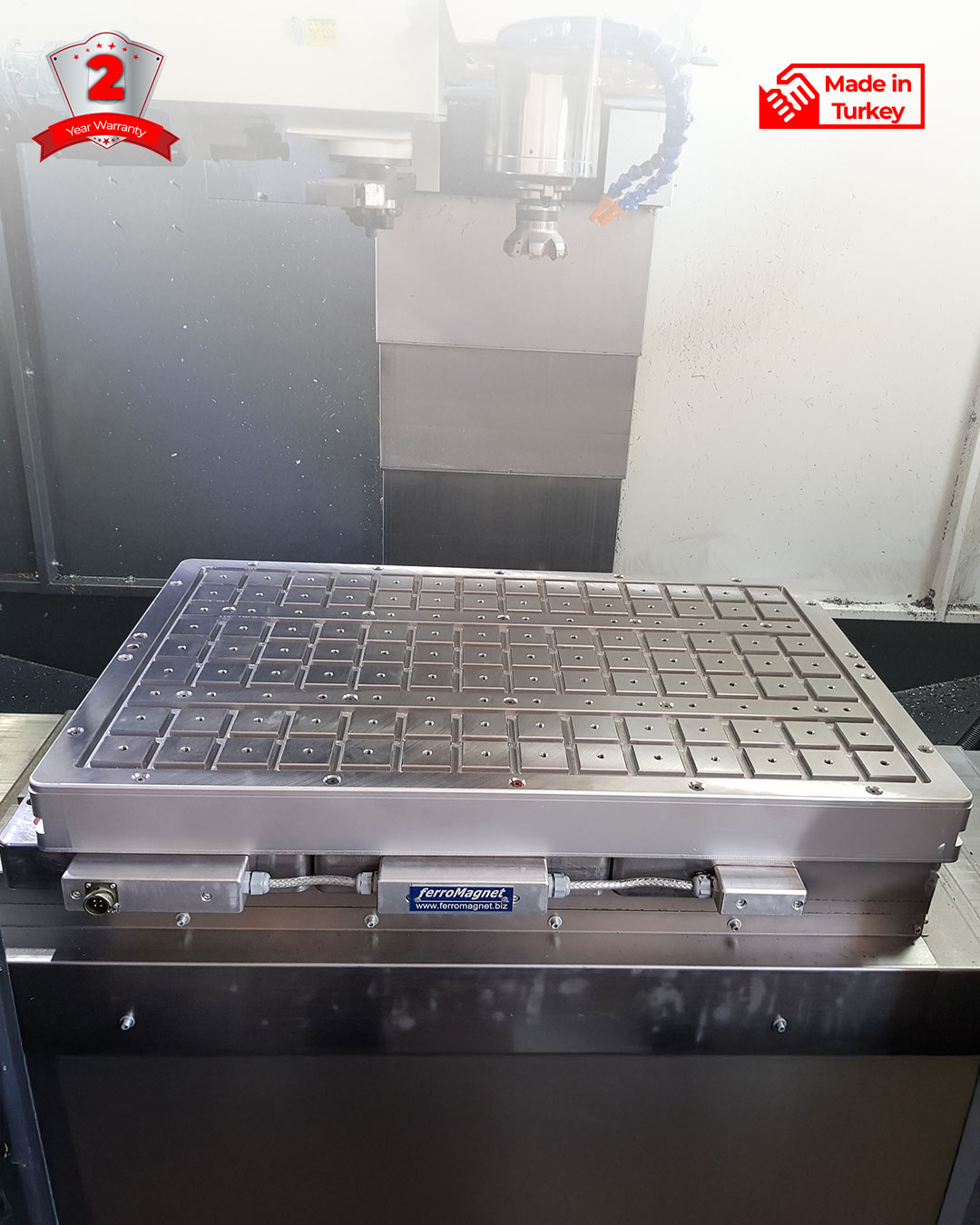

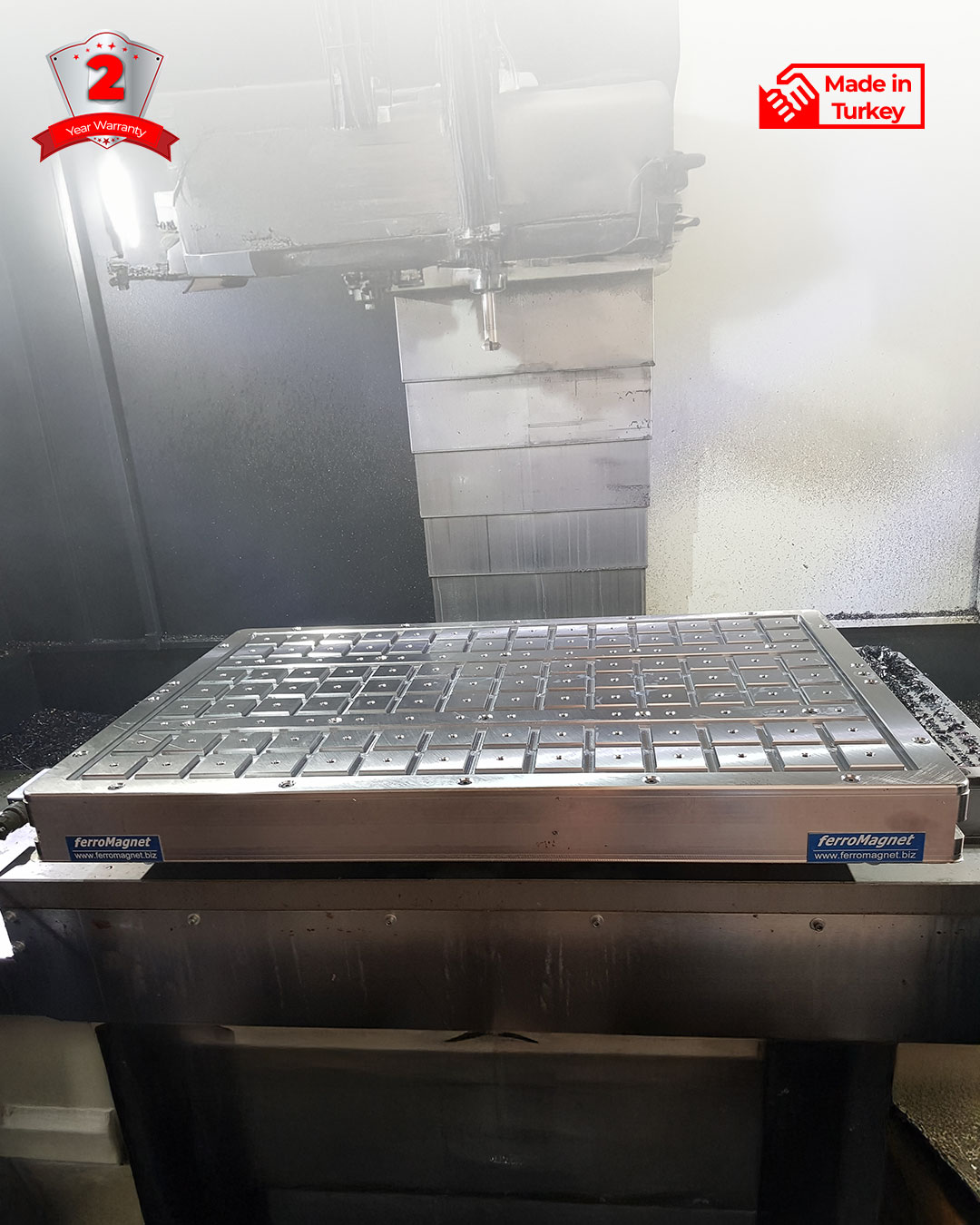

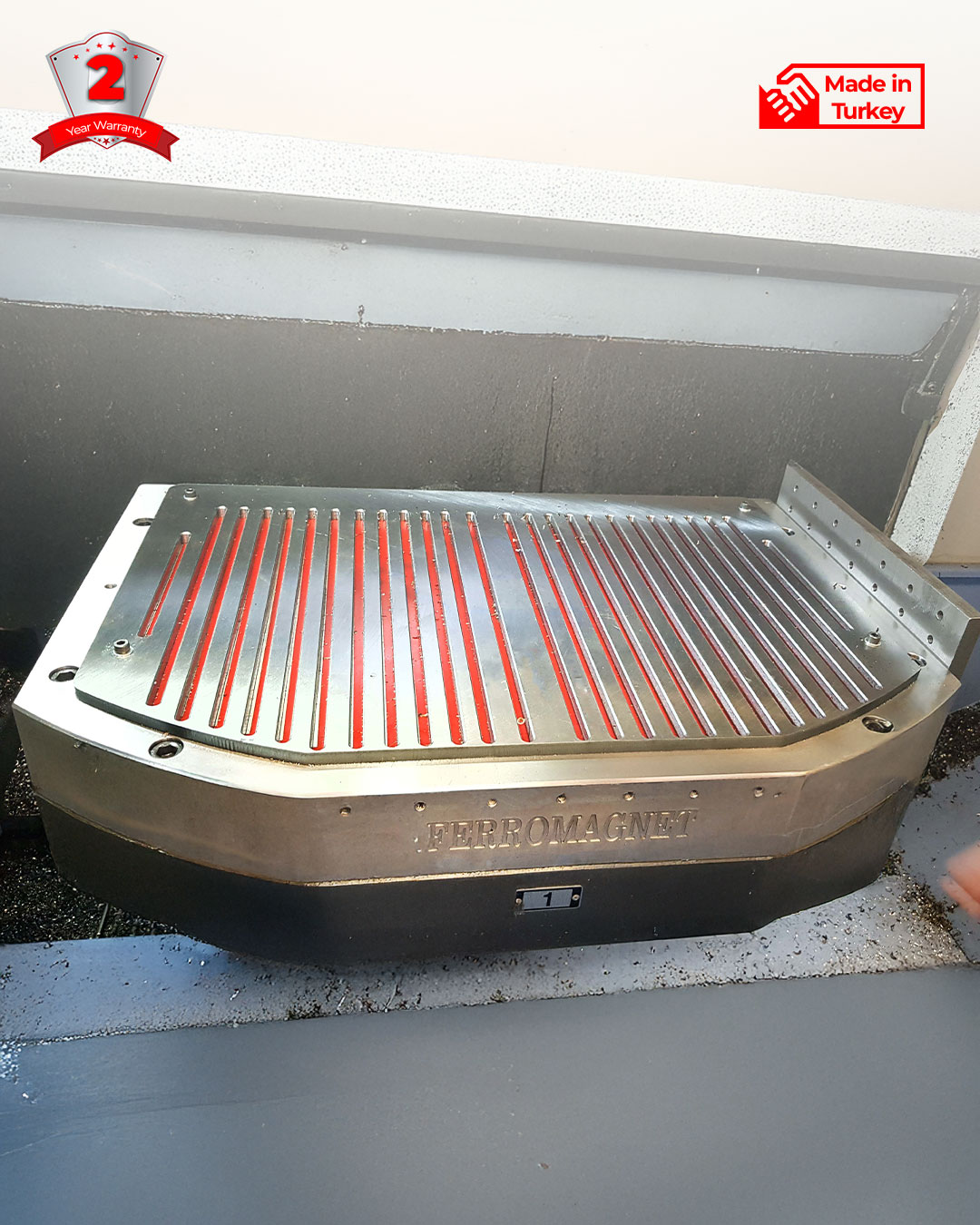

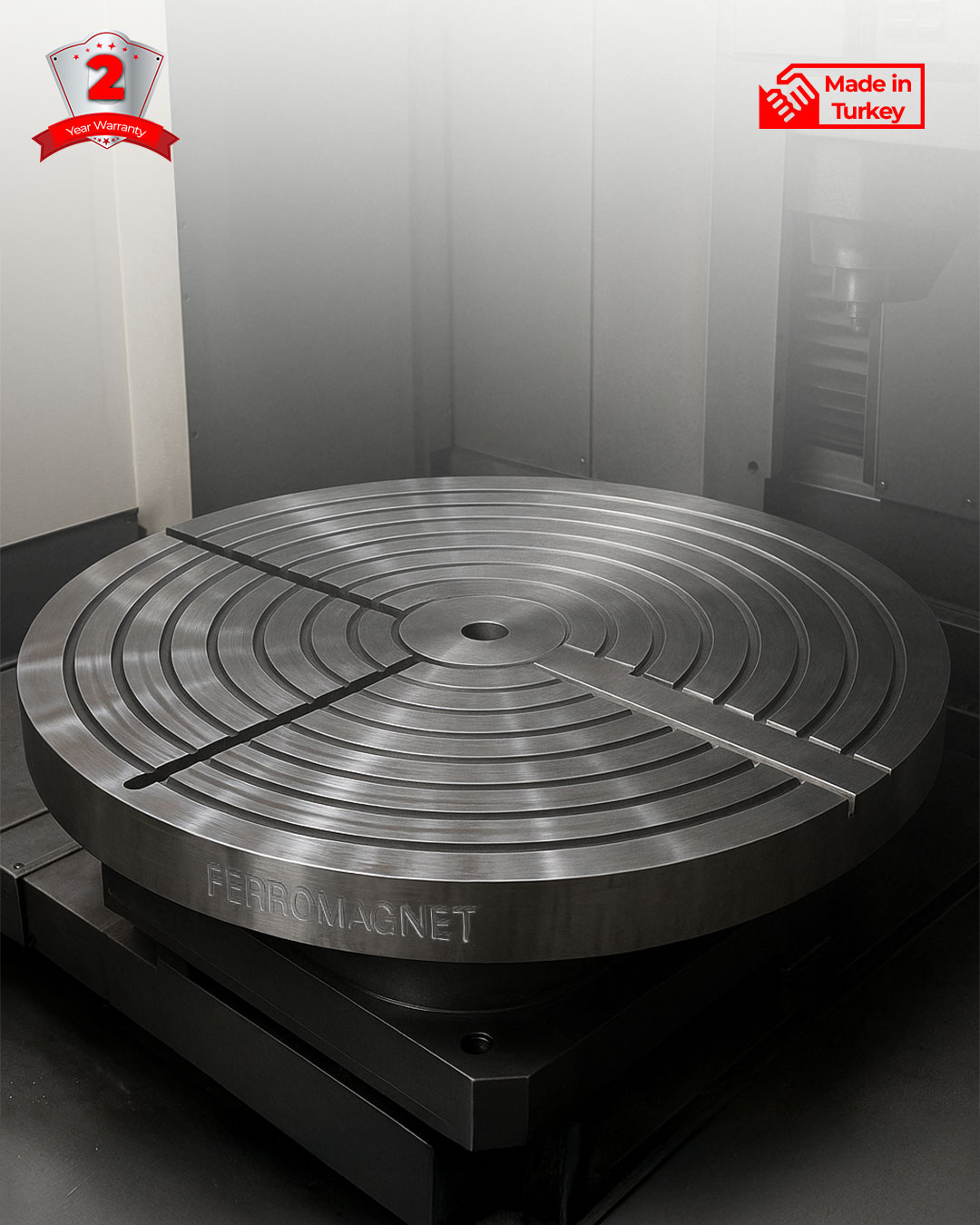

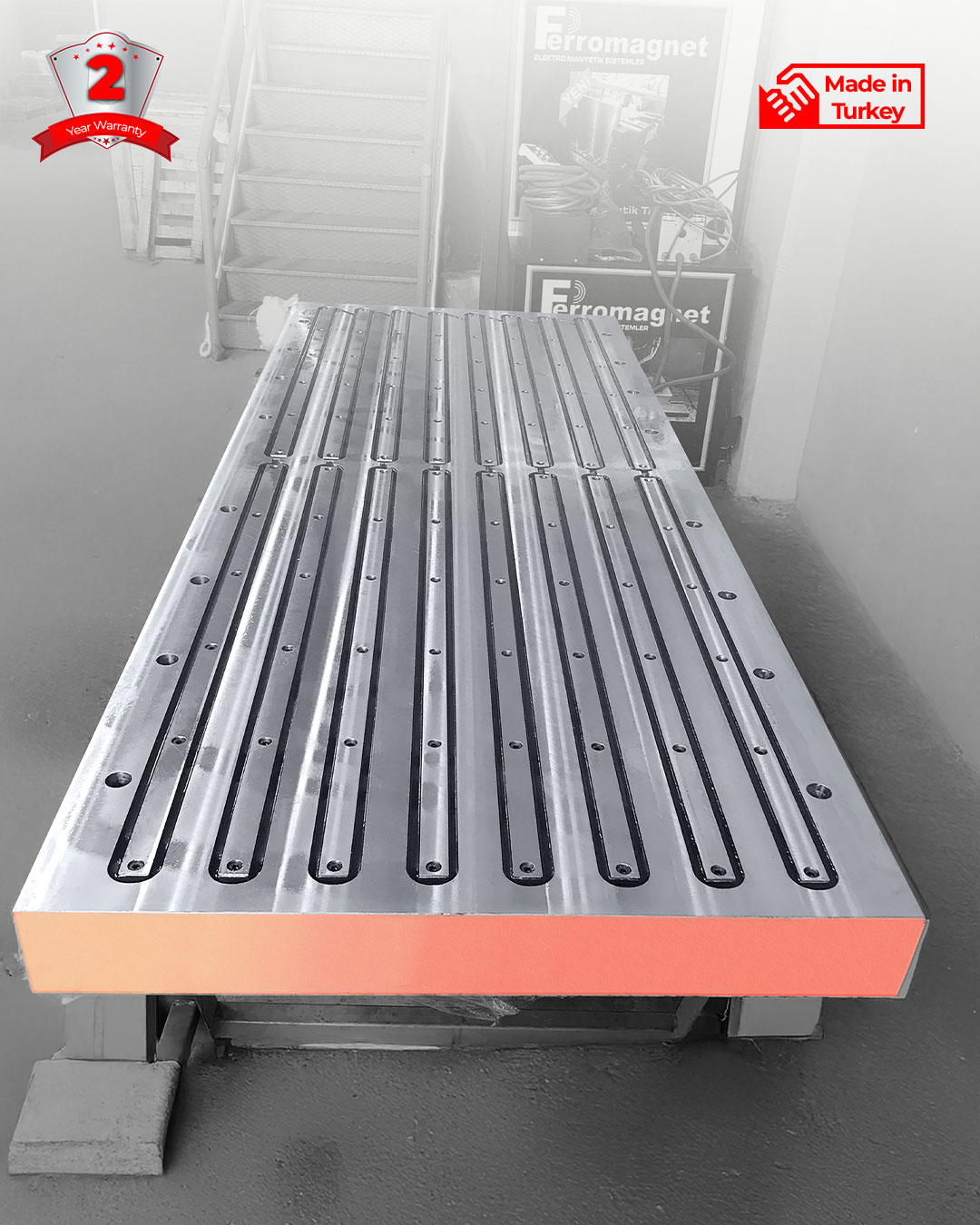

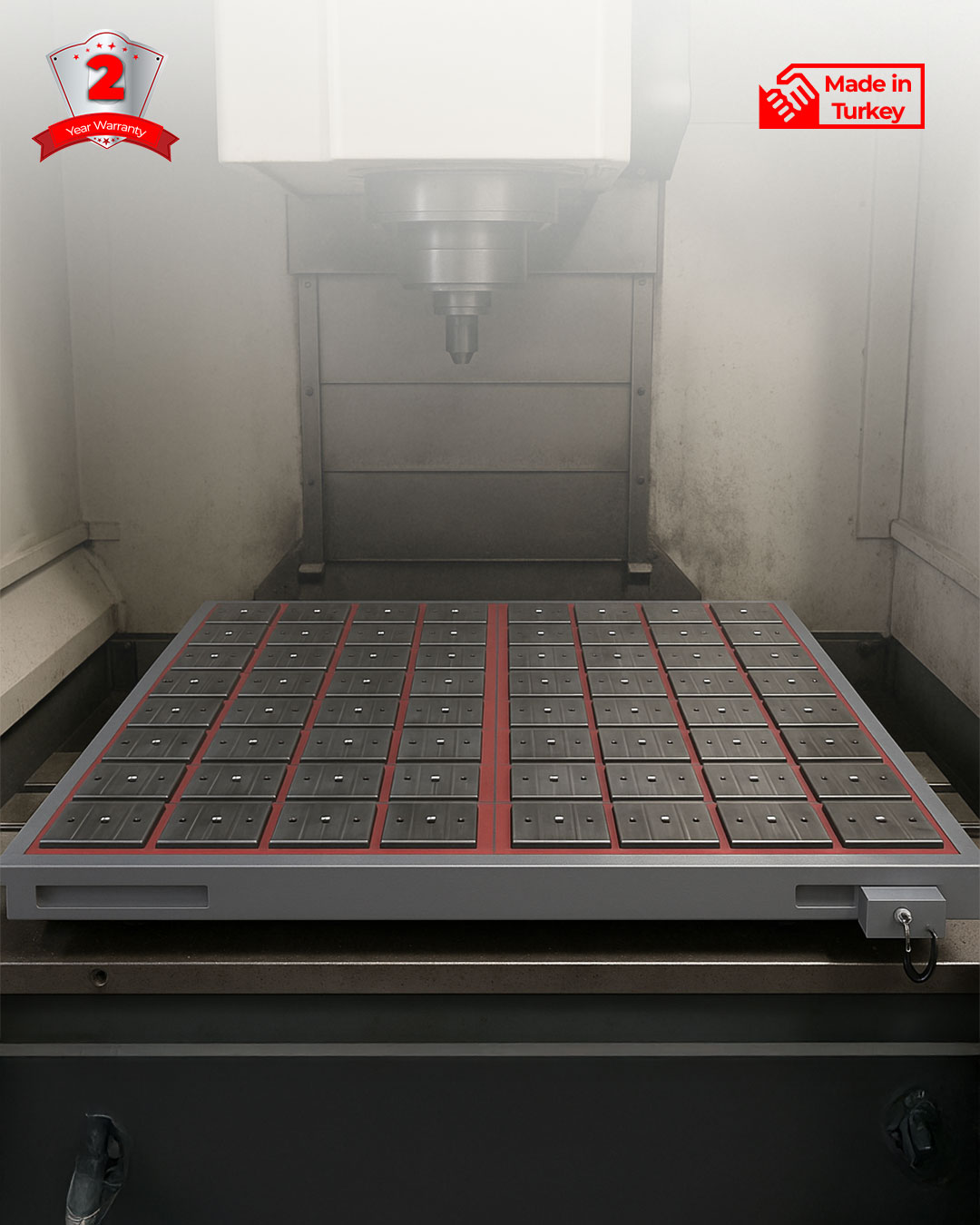

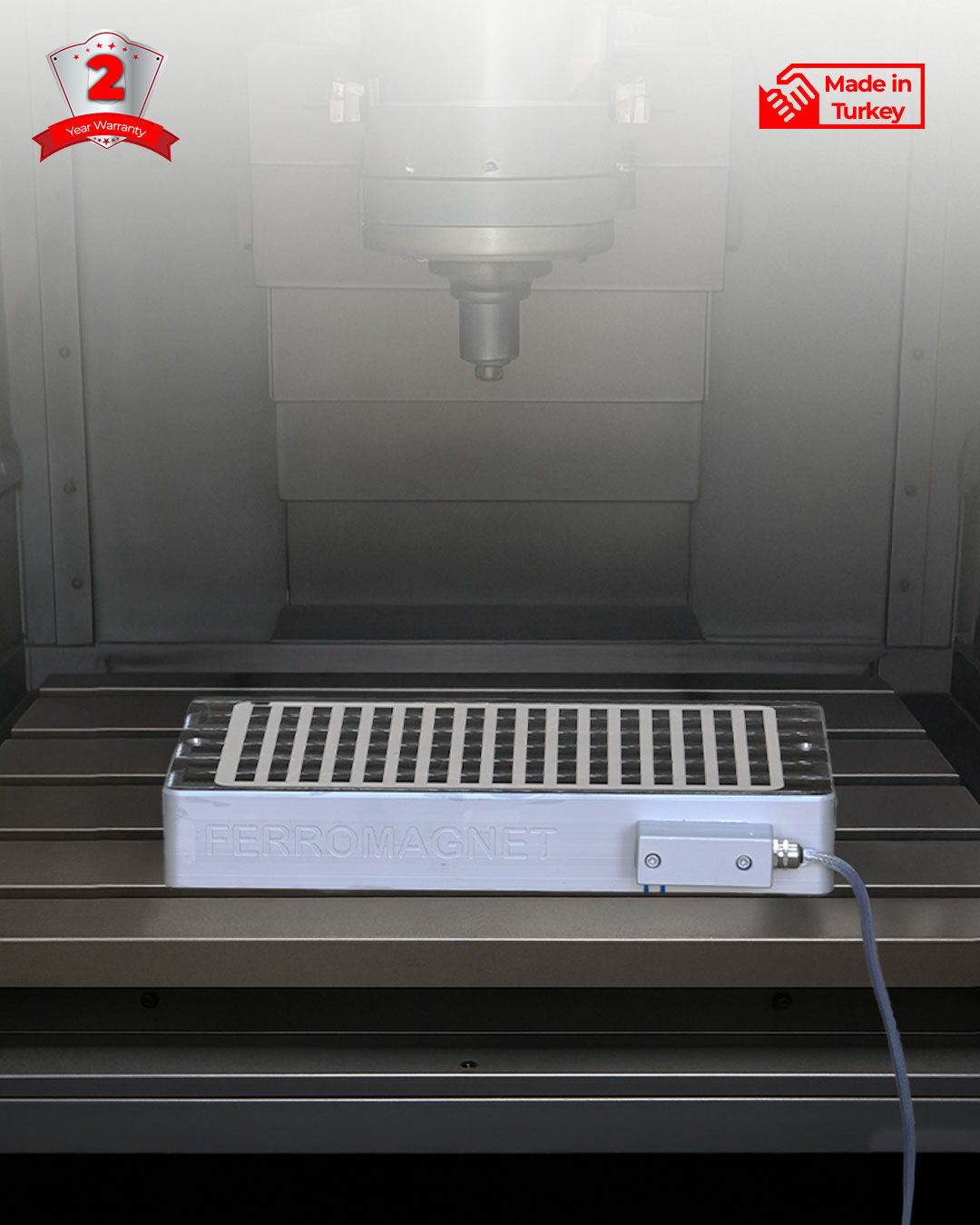

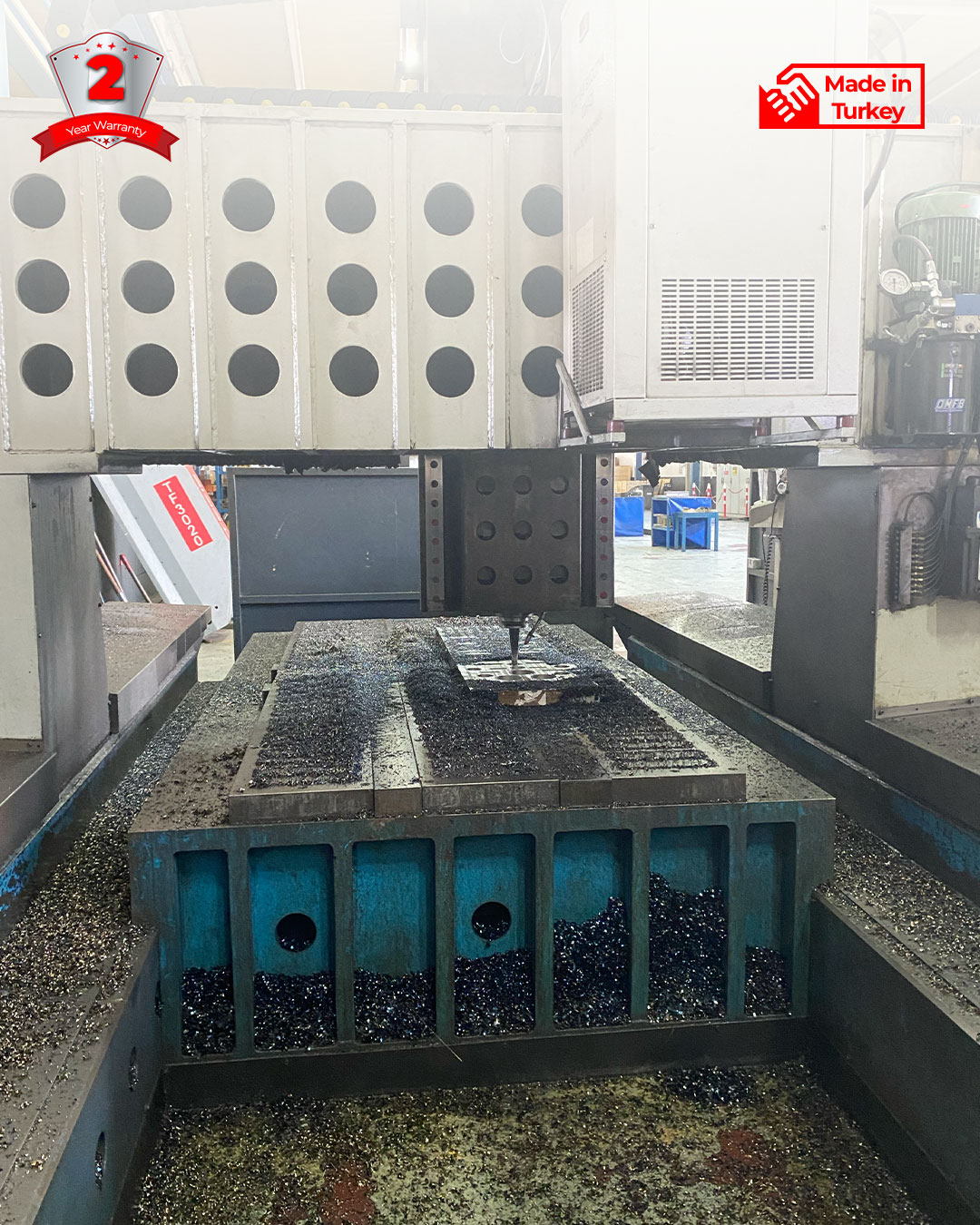

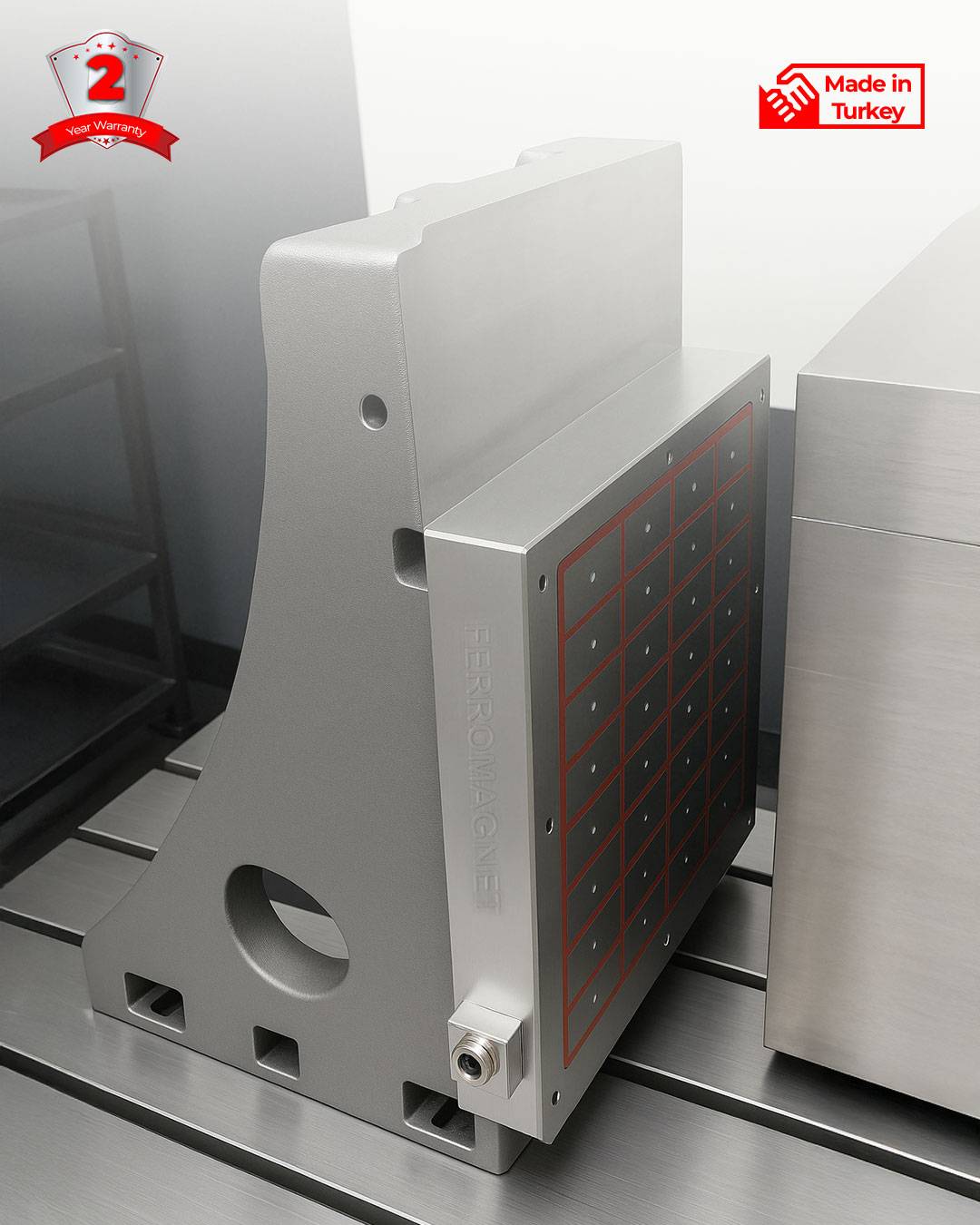

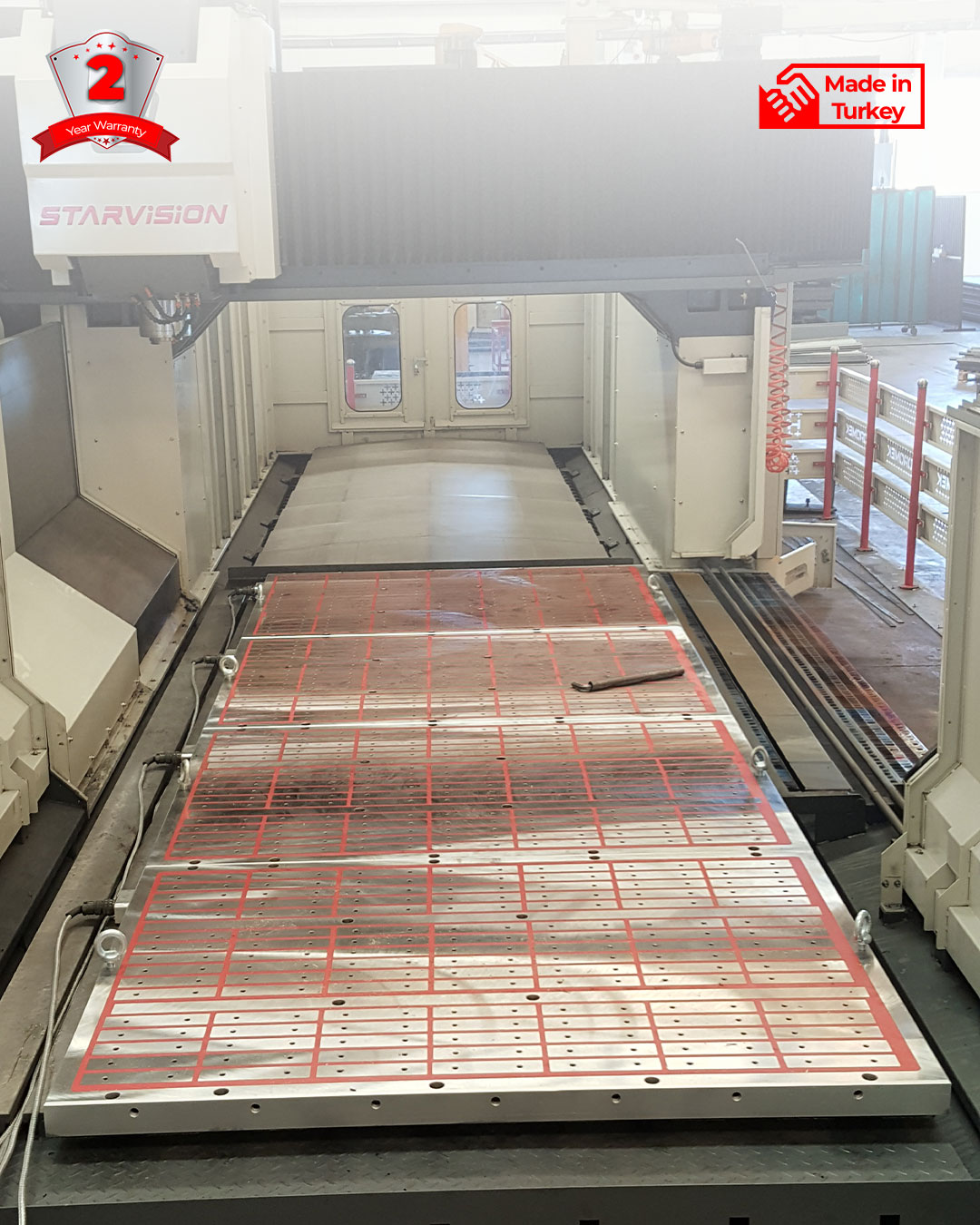

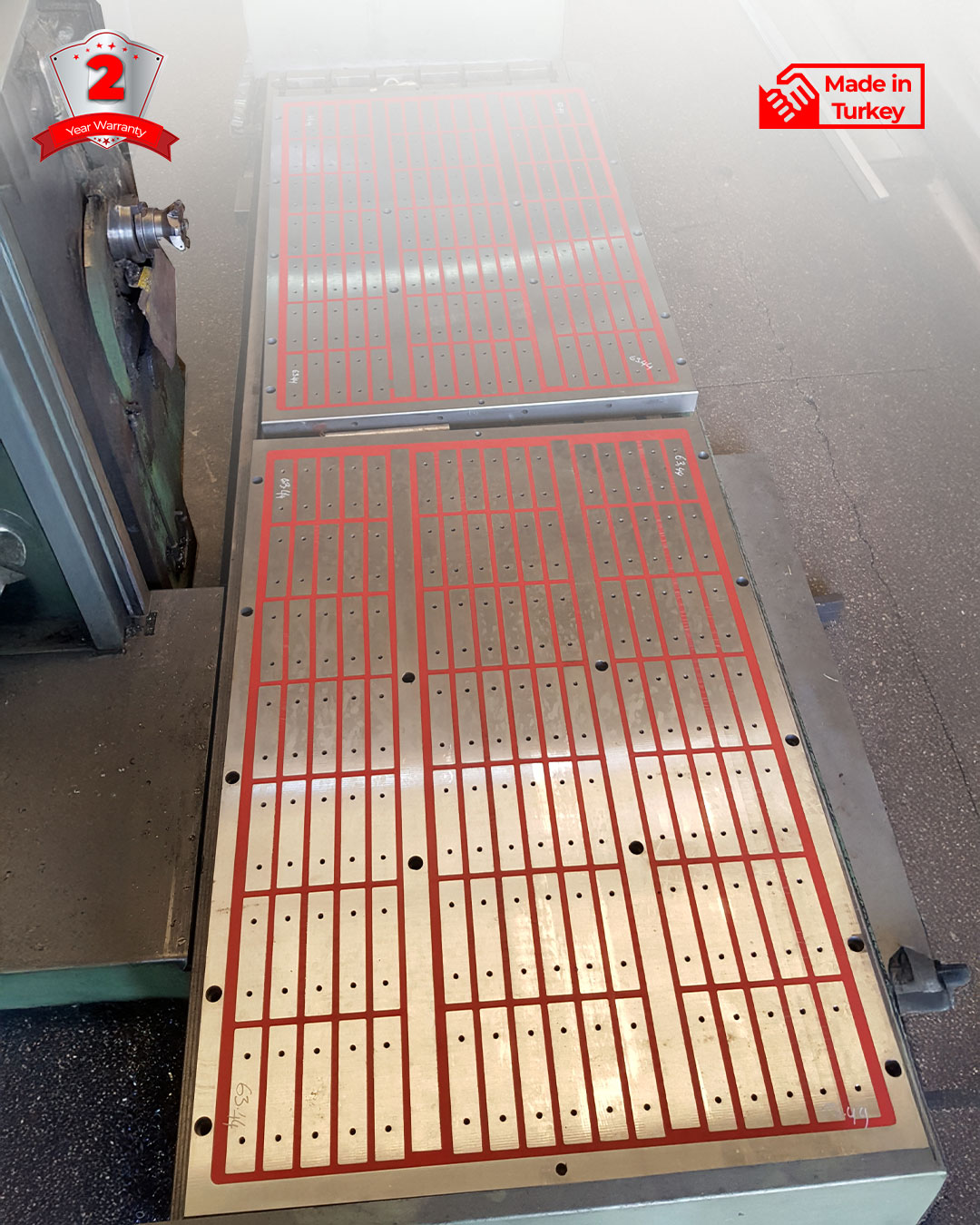

CUSTOM DESIGNED MAGNETIC CHUCK
SPECIAL DESIGN ELECTROMAGNETIC CHUCK
Custom designed magnetic chuck by FERROMAGNET offer innovative solutions tailored to your specific requirements. Designed by our expert engineers and manufactured in our facility, these tables provide superior performance and efficiency for your industrial applications. Whether you need high holding forces, precise control, or specific dimensions, our team can design and build a solution that meets your needs. Contact us to discuss your requirements and discover how our custom designed magnetic chuck can enhance your operations.
Custom design electromagnetic chuck provide innovative solutions to industrial life with FERROMAGNET engineering design, providing superior performance and high efficiency at high processing speeds.
Developed by FERROMAGNET engineers in accordance with the needs of users, and produced in FERROMAGNET’s own facility, custom designed magnetic chuck enhance your production with the magnificent combination of technology and engineering, offering speed and efficiency.
All custom-designed electromagnetic chucks designed by FERROMAGNET are meticulously produced, taking into account even the finest details, by a team of expert engineers based on the part to be processed and the customer’s industry, benefiting from being a domestic and manufacturer firm.
Designed by FERROMAGNET and produced in its factory in Bursa, the magnetic chucks ensure the maximum holding force per pole.
If you wish, you can submit your price quote request for custom-designed electromagnetic chucks by filling out our contact form. Our sales engineers will provide you with the most ideal solution tailored to your company and your job.
Contact us to discuss your requirements and discover how our custom-designed electromagnetic tables can enhance your operations
You can see the FERROMAGNET difference by examining the technical details and advantages.
TURN
TECHNICAL SPECIFICATIONS
- FERROMAGNET custom-designed magnetic chucks/tables require only 2 seconds of electricity for opening/closing operations. Depending on the electromagnetic chucks specifications, it operates with either 380 or 220 V electricity. It does not require electricity during operation.
- FERROMAGNET custom-designed magnetic tables operate with a maximum holding force in the range of 16 kg/cm² - 17.5 kg/cm² according to the laws of physics. (Please do not consider holding forces above 17.5 kg/cm² in your price research, keeping the laws of physics in mind.)
- FERROMAGNET electromagnetic tables are not affected by boron oil and coolant liquids, thanks to the military-type sockets used.
- Custom-designed magnetic tables are not affected by sawdust and metal chips, thanks to the special flame-retardant cables used, making them extremely safe.
- Using FERROMAGNET magnetic chucks/tables, you can machine all 5 surfaces of a workpiece in a single setup.
- FERROMAGNET electromagnetic tables are extremely safe, reduce vibration during machining, prolong the life of cutting tools, and increase your efficiency.
- With its complete insulation and robust mechanical hardware, FERROMAGNET Electromagnetic tables are manufactured in Turkey.
ADVANTAGES
Practical, Flexible & Multi-Functional: FERROMAGNET offers practical and versatile solutions that enable easy part clamping in both standard and custom-designed products. As the largest domestic manufacturer in the electromagnetic systems sector, FERROMAGNET designs and manufactures products specifically tailored to the shape and size of the machine tables and parts to be processed. FERROMAGNET enables the smooth processing of metal parts in different shapes, thereby increasing efficiency.
High Power and Performance: With its powerful magnetic field, FERROMAGNET magnetic chucks offer superior performance compared to other part clamping systems and counterparts, working faster, more productively, and more efficiently. It provides users with high power and performance, leading to time and energy savings.
Reliable and Durable: Made with high-quality materials, FERROMAGNET custom-designed magnetic chucks/tables offer a reliable solution with long-lasting use and low maintenance needs.
Easy Adaptation: Designed to suit various industrial applications, FERROMAGNET electromagnetic tables provide flexibility and easy adaptation. Production is tailored to fit different machine sizes.
User-Friendly: FERROMAGNET custom-designed magnetic chucks offer easy control through user-friendly installation and operation. They are easy and practical to install and use.
Frequently Asked Questions:
What are electromagnetic tables/chucks used for?
Electromagnetic chucks are used for holding and machining parts in metalworking machines. They are commonly used in milling, turning, and drilling operations.
Can I operate multiple electromagnetic chucks simultaneously with a single control unit?
Yes, using Ferromagnet electromagnetic chucks allows you to connect two electromagnetic tables with a dual-output single control unit.
In which industries are electromagnetic chucks used?
Electromagnetic chucks are commonly used in the metalworking industry, automotive industry, machine manufacturing, and similar industries.
What are the advantages of electromagnetic chucks?
Electromagnetic chucks increase safety during machining by securely holding parts and allowing for precise machining of workpieces. They also speed up production processes by enabling quick and easy changeover of workpieces.
What is the warranty period for FERROMAGNET electromagnetic chucks?
FERROMAGNETT electromagnetic systems typically come with a one-year warranty period. However, the warranty period may vary depending on the product and the seller.
What is the total weight of the chucks and the unit?
The weight of the control units is approximately 5 kilograms on average. You can review the weights of Ferromagnet P15 Series & SQ Series magnetic chuck according to their dimensions in the table below.
What is the holding force of the electromagnetic chucks?
You can review the holding forces of Ferromagnet P15 Series & SQ Series electromagnetic chuck according to their dimensions in the table below.
After purchase, how are shipping processes carried out?
Shipping fees vary depending on the shipping company we have an agreement with, the weight, and the distance. We offer shipping to every part of Europe. Products are sent with the recipient paying for the shipping.
If it comes into contact with liquid during processing, would I encounter any problems?
Ferromagnet electromagnetic chucks are resistant to liquid contact thanks to their military-grade sockets. This feature means that they will not be affected by boron oil and coolant fluids. Therefore, you will not encounter any problems caused by liquid contact during processing.
What are the special and standard dimensions of electromagnetic chucks?
Electromagnetic tables are typically produced in standard and custom sizes. Standard sizes are usually determined according to industrial standards and are suitable for commonly used machine models. Custom sizes, on the other hand, are determined according to customer requests and are produced specifically for a particular project or application. Custom sizes can vary in dimensions and shapes from standard sizes and are usually designed to provide the required features for a specific product or application. For example, electromagnetic tables with a larger surface area can be produced in custom sizes to process larger parts.
You can review the standard magnetic table dimensions of the FERROMAGNET P15 series & SQ Series in the table below.
The choice of workholding fixture is crucial for maximizing machining and production efficiency, as how a machined part is held is just as important as how it is cut. FERROMAGNET offers a range of electro permanent magnetic chucks designed to securely hold ferromagnetic workpieces for grinding, milling, and CNC machining lathe machine applications. These chucks provide several advantages to your machining process:
- Ensures constant and uniform clamping, providing full support to the workpiece.
- Eliminates vibrations and chatter, unlike mechanical clamps and vises.
- Enables access to multi-side machining without the need to stop and re-position the workpiece.
- Enhances safety with electro-permanent magnetic technology, ensuring a secure and stable hold of the workpiece even in the event of a power outage.
MODEL CODE | WIDTH (MM) | LENGTH (MM) | POLE PITCH (MM) | OPERATING VOLTAGE | TOTAL CLAMPING FORCE | TOTAL WEIGHT |
SQ FM EPMT 400*400 | 400 | 400 | 55 | 220 V. | 9 TON | 55 KG |
SQ FM EPMT 400*600 | 400 | 600 | 55 | 220 V. | 14 TON | 75 KG |
SQ FM EPMT 400*800 | 400 | 800 | 55 | 220 V. | 18 TON | 110 KG |
MODEL CODE | WIDTH (MM) | LENGTH (MM) | POLE PITCH (MM) | OPERATING VOLTAGE | TOTAL CLAMPING FORCE | TOTAL WEIGHT |
P15 FM EPMC 500*500 | 500 | 500 | 15 | 220 V. | 13 TON | 85 KG |
P15 FM EPMC 500*600 | 500 | 600 | 15 | 220 V. | 20 TON | 110 KG |
P15 FM EPMC 500*800 | 500 | 800 | 15 | 220 V. | 35 TON | 180 KG |
